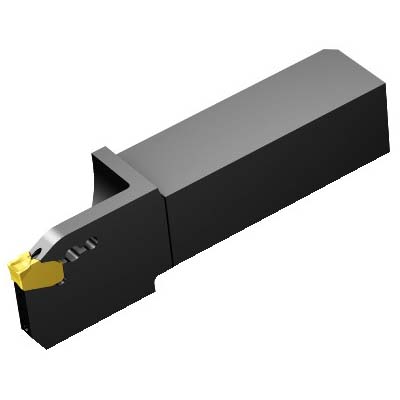

Sandvik Coromant 6427660 CoroCut® QD QS Indexable Shank Tool, QD-NH-0400-0002-CM insert, H Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6427660 CoroCut® QD QS Indexable Shank Tool, QD-NH-0400-0002-CM insert, H Insert Seat, Left Hand
SKU1239566
MFGR #6427660
Your Cost: $555.19/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NH-0400-0002-CM, QS-QD-LFH1300C12D, 4.0787 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Left Hand Cutting, 1.3 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NH-0400-0002-CM, QS-QD-LFH1300C12D, 4.0787 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Left Hand Cutting, 1.3 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-QD-LFH1300C12D Catalog Number 6427660 Country of Origin SE Gross Weight Per Pack 0.5300 lb Head Length 2.11 in Internal or External External Item Group 480 Material Steel Series CoroCut® QD QS Toolholder Style QS-QD-R/LF..C..D Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility QD-NH-0400-0002-CM Insert Seat Size H Maximum Depth of Cut 1.3 in Overall Length 4.079 in Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric and radial entry coolant 150 bar coolant 66.04 mm maximum workpiece parting diameter Axial concentric coolant exit 90 deg cutting edge 53.6 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-QD-LFH1300C12D ISO Code: QS-QD-LFH1300C12D
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-QD-LFH1300C12D |
| Catalog Number | 6427660 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.5300 lb |
| Head Length | 2.11 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® QD QS |
| Toolholder Style | QS-QD-R/LF..C..D |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | QD-NH-0400-0002-CM |
| Insert Seat Size | H |
| Maximum Depth of Cut | 1.3 in |
| Overall Length | 4.079 in |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| 66.04 mm maximum workpiece parting diameter |
| Axial concentric coolant exit |
| 90 deg cutting edge |
| 53.6 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-QD-LFH1300C12D |
| ISO Code: QS-QD-LFH1300C12D |
