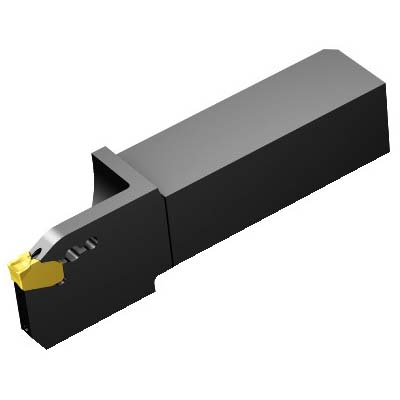

Sandvik Coromant 6427659 CoroCut® QD QS Indexable Shank Tool, QD-NG-0300-0002-CM insert, G Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6427659 CoroCut® QD QS Indexable Shank Tool, QD-NG-0300-0002-CM insert, G Insert Seat, Left Hand
SKU1239467
MFGR #6427659
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NG-0300-0002-CM, QS-QD-LFG26C2525D, 4.3937 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, G Insert Seat, Left Hand Cutting, 1.0236 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NG-0300-0002-CM, QS-QD-LFG26C2525D, 4.3937 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, G Insert Seat, Left Hand Cutting, 1.0236 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-QD-LFG26C2525D Catalog Number 6427659 Country of Origin SE Gross Weight Per Pack 1.0400 lb Head Length 52.6 mm Internal or External External Item Group 480 Material Steel Series CoroCut® QD QS Toolholder Style QS-QD-R/LF..C..D Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility QD-NG-0300-0002-CM Insert Seat Size G Maximum Depth of Cut 26 mm Overall Length 111.6 mm Shank Size 25 mm H x 25 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric and radial entry coolant 150 bar coolant 52 mm maximum workpiece parting diameter Axial concentric coolant exit 90 deg cutting edge 52.6 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-QD-LFG26C2525D ISO Code: QS-QD-LFG26C2525D
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-QD-LFG26C2525D |
| Catalog Number | 6427659 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.0400 lb |
| Head Length | 52.6 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® QD QS |
| Toolholder Style | QS-QD-R/LF..C..D |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Insert Seat Size | G |
| Maximum Depth of Cut | 26 mm |
| Overall Length | 111.6 mm |
| Shank Size | 25 mm H x 25 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| 52 mm maximum workpiece parting diameter |
| Axial concentric coolant exit |
| 90 deg cutting edge |
| 52.6 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-QD-LFG26C2525D |
| ISO Code: QS-QD-LFG26C2525D |
