Sandvik Coromant 6427633 CoroCut® QD Indexable Shank Tool, QD-NH-0400-0002-CM insert, H Insert Seat, Right Hand

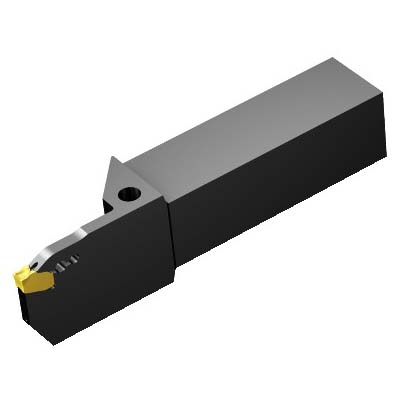

Custom_Product_Images_Illustration
Sandvik Coromant 6427633 CoroCut® QD Indexable Shank Tool, QD-NH-0400-0002-CM insert, H Insert Seat, Right Hand
SKU1238265
MFGR #6427633
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NH-0400-0002-CM, QD-RFH1800C20A, 7 in Overall Length, Rectangular Shank, 1-1/4 in H x 1-1/4 in W Shank, H Insert Seat, Right Hand Cutting, 1.8 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NH-0400-0002-CM, QD-RFH1800C20A, 7 in Overall Length, Rectangular Shank, 1-1/4 in H x 1-1/4 in W Shank, H Insert Seat, Right Hand Cutting, 1.8 in Maximum Depth of Cut, Steel
Alternate Catalog Number QD-RFH1800C20A Catalog Number 6427633 Country of Origin SE Gross Weight Per Pack 2.4200 lb Head Length 2.638 in Internal or External External Item Group 480 Material Steel Series CoroCut® QD Toolholder Style QD-R/LF..C..A Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility QD-NH-0400-0002-CM Insert Seat Size H Maximum Depth of Cut 1.8 in Overall Length 7 in Shank Size 1-1/4 in H x 1-1/4 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Radial coolant entry 150 bar coolant Axial concentric coolant exit 90 deg cutting edge 67 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QD-RFH1800C20A ISO Code: QD-RFH1800C20A
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-RFH1800C20A |
| Catalog Number | 6427633 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.4200 lb |
| Head Length | 2.638 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® QD |
| Toolholder Style | QD-R/LF..C..A |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | QD-NH-0400-0002-CM |
| Insert Seat Size | H |
| Maximum Depth of Cut | 1.8 in |
| Overall Length | 7 in |
| Shank Size | 1-1/4 in H x 1-1/4 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Radial coolant entry |
| 150 bar coolant |
| Axial concentric coolant exit |
| 90 deg cutting edge |
| 67 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QD-RFH1800C20A |
| ISO Code: QD-RFH1800C20A |
