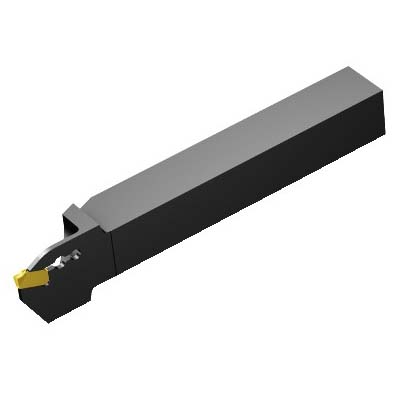

Sandvik Coromant 6427584 CoroCut® QD Indexable Shank Tool, QD-NH-0400-0002-CM insert, H Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6427584 CoroCut® QD Indexable Shank Tool, QD-NH-0400-0002-CM insert, H Insert Seat, Left Hand
SKU1229858
MFGR #6427584
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NH-0400-0002-CM, QD-LFH1300-12S, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Left Hand Cutting, 1.3 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NH-0400-0002-CM, QD-LFH1300-12S, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Left Hand Cutting, 1.3 in Maximum Depth of Cut, Steel
Alternate Catalog Number QD-LFH1300-12S Catalog Number 6427584 Country of Origin SE Finish Rectangular Geometry QD-LFH1300-12S Gross Weight Per Pack 0.6200 lb Head Length QD-LFH1300-12S Item Group 480 Material Steel Minimum Groove Width 127 mm Series CoroCut® QD Type Indexable UPC 11 69826275423 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® QD Cutting Direction Left Hand Insert Compatibility QD-NH-0400-0002-CM Insert Seat Size H Maximum Depth of Cut 1.3 in Overall Length 5 in Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 66.04 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 42 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QD-LFH1300-12S ISO Code: QD-LFH1300-12S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-LFH1300-12S |
| Catalog Number | 6427584 |
| Country of Origin | SE |
| Finish | Rectangular |
| Geometry | QD-LFH1300-12S |
| Gross Weight Per Pack | 0.6200 lb |
| Head Length | QD-LFH1300-12S |
| Item Group | 480 |
| Material | Steel |
| Minimum Groove Width | 127 mm |
| Series | CoroCut® QD |
| Type | Indexable |
| UPC 11 | 69826275423 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® QD |
| Cutting Direction | Left Hand |
| Insert Compatibility | QD-NH-0400-0002-CM |
| Insert Seat Size | H |
| Maximum Depth of Cut | 1.3 in |
| Overall Length | 5 in |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 66.04 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 42 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QD-LFH1300-12S |
| ISO Code: QD-LFH1300-12S |
