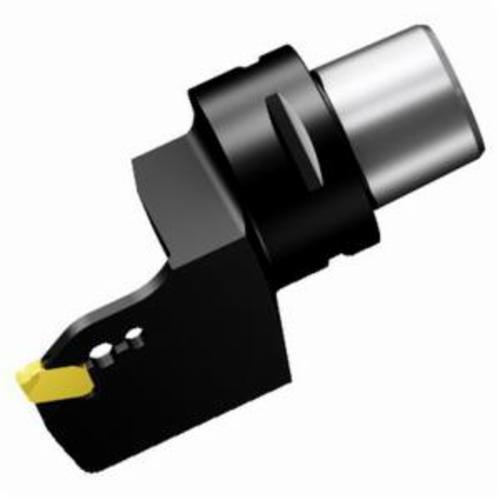

Sandvik Coromant 6427541 CoroCut® QD, Right Hand, QD-NH-0400-0002-CM Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6427541 CoroCut® QD, Right Hand, QD-NH-0400-0002-CM Insert
SKU1237958
MFGR #6427541
$/ea
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® QD, C4-QD-RFH32C27070A, Right Hand Cutting, Insert Compatibility: QD-NH-0400-0002-CM, 1.2598 in Maximum Depth of Cut, 2.7559 in Head Length, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® QD, C4-QD-RFH32C27070A, Right Hand Cutting, Insert Compatibility: QD-NH-0400-0002-CM, 1.2598 in Maximum Depth of Cut, 2.7559 in Head Length, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-QD-RFH32C27070A Catalog Number 6427541 Country of Origin SE Gross Weight Per Pack 1.0100 lb Head Length 70 mm Item Group 410 Material Steel Modular Head Style C4-QD-RF Series CoroCut® QD System Size C4 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 27 mm Cutting Direction Right Hand Insert Compatibility QD-NH-0400-0002-CM Insert Style QD-NH Maximum Depth of Cut 32 mm High precision coolant|Y-axis parting|Stable, user-friendly clamping with a railed insert seat for a precise insert position and a quick-release key that eliminates the need for a torque wrench|Adjustable cutting depth and overhang with maintained coolant|Made of a strong material alloy with high fatigue resistance, the blades are optimized for reliable parting off and deep grooving|Spring lock design 0 deg body workpiece side Axial concentric and radial coolant entry 150 bar coolant Axial inclined coolant exit 40 mm Dia connection 161 mm Dia minimum bore 0 deg rake orthogonal 90 deg cutting edge 0 deg inclination 20 life cycle state 70 mm length to cutting item reference point 94 mm OAL 70 mm overhang ANSI Code: C4-QD-RFH32C27070A ISO Code: C4-QD-RFH32C27070A
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-QD-RFH32C27070A |
| Catalog Number | 6427541 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.0100 lb |
| Head Length | 70 mm |
| Item Group | 410 |
| Material | Steel |
| Modular Head Style | C4-QD-RF |
| Series | CoroCut® QD |
| System Size | C4 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 27 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | QD-NH-0400-0002-CM |
| Insert Style | QD-NH |
| Maximum Depth of Cut | 32 mm |
| High precision coolant|Y-axis parting|Stable, user-friendly clamping with a railed insert seat for a precise insert position and a quick-release key that eliminates the need for a torque wrench|Adjustable cutting depth and overhang with maintained coolant|Made of a strong material alloy with high fatigue resistance, the blades are optimized for reliable parting off and deep grooving|Spring lock design |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 150 bar coolant |
| Axial inclined coolant exit |
| 40 mm Dia connection |
| 161 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 70 mm length to cutting item reference point |
| 94 mm OAL |
| 70 mm overhang |
| ANSI Code: C4-QD-RFH32C27070A |
| ISO Code: C4-QD-RFH32C27070A |
