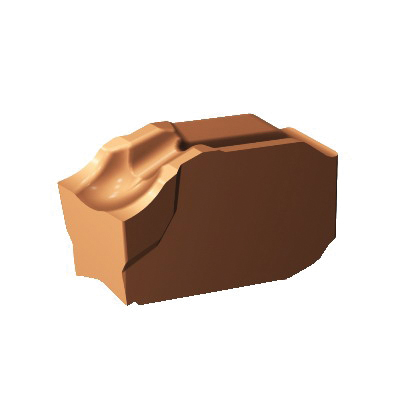

Sandvik Coromant 6427380 CoroCut® QD, QD-NG-0300-0001-CO 1125, QD-N..-CO Insert, Carbide, 1125, QD-NG-0300-0001-CO 1125
QD Cut-off & Parting Inserts
818212
MFG #: 6427380
Sandvik Coromant
27.30000
/ ea
Sandvik Coromant Parting Insert, Series: CoroCut® QD, QD-N..-CO Insert, 0.122 in Thickness, 0.1181 in Width, 0.393 in Length, CO Chipbreaker, 0.003 in Corner Radius, Manufacturer's Grade: 1125, ANSI Code: QD-NG-0300-0001-CO 1125, ISO Code: QD-NG-0300-0001-CO 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| E cutting edge condition |
| 0 deg lead |
| 1 edge |
| Spring clamp mounting |
| Positive rake |
| 0.03 - 0.15 mm/r cutting feed |
| 7 insert mounting style code |
| G insert seat size code |
