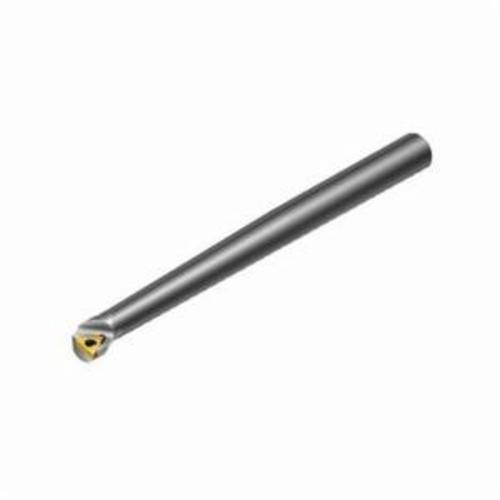

Sandvik Coromant 6424074 Boring Bar With Indexable Inserts, 0.5511 in Min, 5.7086 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6424074 Boring Bar With Indexable Inserts, 0.5511 in Min, 5.7086 in OAL, Right Hand
SKU1229941
MFGR #6424074
Your Cost: $731.73/ea
Sandvik Coromant Boring Bar, 0.5511 in Minimum Bore Dia, 5.7086 in Overall Length, 0.6299 in Shank Dia, Cylindrical Shank with 3-Flats Shank, Right Hand Cutting, Insert Compatibility: TCMT 09 02 02, Triangle Insert, 7/32 in Insert Inscribed Circle, 5513 020-47 Insert Screw, 0.093 in Insert Thickness, Carbide
Sandvik Coromant Boring Bar, 0.5511 in Minimum Bore Dia, 5.7086 in Overall Length, 0.6299 in Shank Dia, Cylindrical Shank with 3-Flats Shank, Right Hand Cutting, Insert Compatibility: TCMT 09 02 02, Triangle Insert, 7/32 in Insert Inscribed Circle, 5513 020-47 Insert Screw, 0.093 in Insert Thickness, Carbide
Alternate Catalog Number R429U-E16-14084TC09 Catalog Number 6424074 Country of Origin US Cutting Direction Right Hand Gross Weight Per Pack 0.5300 lb Insert Screw 5513 020-47 Insert Thickness 0.093 in Item Group 560 Maximum Bore Diameter Cylindrical Shank with 3-Flats Overall Length 5.7086 in Series 145 mm Shank Type Cylindrical Shank with 3-Flats UPC 11 69826275761 Width Offset 16 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Insert Compatibility TCMT 09 02 02 Insert Shape Triangle Material Carbide Maximum Bore Depth Right Hand Minimum Bore Diameter 0.5511 in Shank Diameter 0.6299 in Type 5763200 Screw and 5764144 Key Axial concentric coolant entry 20 bar coolant 40 - 60 deg insert screw clamping interface Axial inclined coolant exit 0 deg orthogonal rake 15.5 mm H shank 92 deg cutting edge -8 deg inclination 145 mm L functional 84 mm L usable 86 - 108 mm overhang -2 deg lead 0.8 Nm torque R429U-E..TC tool style 7 mm W functional 20 life cycle state ANSI Code: R429U-E16-14084TC09 ISO Code: R429U-E16-14084TC09
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R429U-E16-14084TC09 |
| Catalog Number | 6424074 |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.5300 lb |
| Insert Screw | 5513 020-47 |
| Insert Thickness | 0.093 in |
| Item Group | 560 |
| Maximum Bore Diameter | Cylindrical Shank with 3-Flats |
| Overall Length | 5.7086 in |
| Series | 145 mm |
| Shank Type | Cylindrical Shank with 3-Flats |
| UPC 11 | 69826275761 |
| Width Offset | 16 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Insert Compatibility | TCMT 09 02 02 |
| Insert Shape | Triangle |
| Material | Carbide |
| Maximum Bore Depth | Right Hand |
| Minimum Bore Diameter | 0.5511 in |
| Shank Diameter | 0.6299 in |
| Type | 5763200 Screw and 5764144 Key |
| Axial concentric coolant entry |
| 20 bar coolant |
| 40 - 60 deg insert screw clamping interface |
| Axial inclined coolant exit |
| 0 deg orthogonal rake |
| 15.5 mm H shank |
| 92 deg cutting edge |
| -8 deg inclination |
| 145 mm L functional |
| 84 mm L usable |
| 86 - 108 mm overhang |
| -2 deg lead |
| 0.8 Nm torque |
| R429U-E..TC tool style |
| 7 mm W functional |
| 20 life cycle state |
| ANSI Code: R429U-E16-14084TC09 |
| ISO Code: R429U-E16-14084TC09 |
