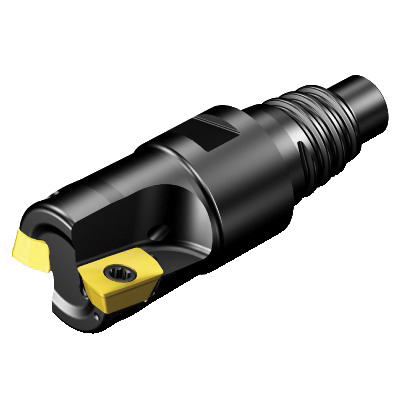

Sandvik Coromant 6416915 CoroMill® 390 Square Shoulder Milling Cutter, RA390..EH Insert, 1 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6416915 CoroMill® 390 Square Shoulder Milling Cutter, RA390..EH Insert, 1 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1229916
MFGR #6416915
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1 in Cutting Dia, 2.3228 in Overall Length, 0.394 in Maximum Depth of Cut, RA390..EH Insert, 2 Inserts, Insert Compatibility: R390-11, 0.9645 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-025EH25-11L, ISO Code: RA390-025EH25-11L, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1 in Cutting Dia, 2.3228 in Overall Length, 0.394 in Maximum Depth of Cut, RA390..EH Insert, 2 Inserts, Insert Compatibility: R390-11, 0.9645 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-025EH25-11L, ISO Code: RA390-025EH25-11L, Steel
Alternate Catalog Number RA390-025EH25-11L ANSI Code RA390-025EH25-11L Catalog Number 6416915 Country of Origin US Gross Weight Per Pack 0.2600 lb Head Length 10 mm Insert Gage Screw 24.5 mm ISO Code RA390-025EH25-11L Item Group 440 Lead Angle 90 Material Steel Series CoroMill® 390 Type Square UPC 11 69826275652 Warranty Square Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 1 in Cutting Direction Right Hand Insert Compatibility R390-11 Insert Style RA390..EH Maximum Depth of Cut 0.394 in Number of Inserts 2 Overall Length 2.3228 in Shank Diameter 0.9645 in Shank Length CoroMill® 390 Shank Type 24.5 mm 1 mm D plunge Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 25.4 mm Dia maximum cutting 90 deg cutting edge 35 mm overhang 4.9 deg maximum ramping 36100 r/min cutting feed 1.2 Nm torque 20 life cycle state 1 maximum working engagement ratio Coromant EH adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RA390-025EH25-11L |
| ANSI Code | RA390-025EH25-11L |
| Catalog Number | 6416915 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.2600 lb |
| Head Length | 10 mm |
| Insert Gage Screw | 24.5 mm |
| ISO Code | RA390-025EH25-11L |
| Item Group | 440 |
| Lead Angle | 90 |
| Material | Steel |
| Series | CoroMill® 390 |
| Type | Square |
| UPC 11 | 69826275652 |
| Warranty | Square |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 1 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R390-11 |
| Insert Style | RA390..EH |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 2 |
| Overall Length | 2.3228 in |
| Shank Diameter | 0.9645 in |
| Shank Length | CoroMill® 390 |
| Shank Type | 24.5 mm |
| 1 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 25.4 mm Dia maximum cutting |
| 90 deg cutting edge |
| 35 mm overhang |
| 4.9 deg maximum ramping |
| 36100 r/min cutting feed |
| 1.2 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Coromant EH adaptive interface |
