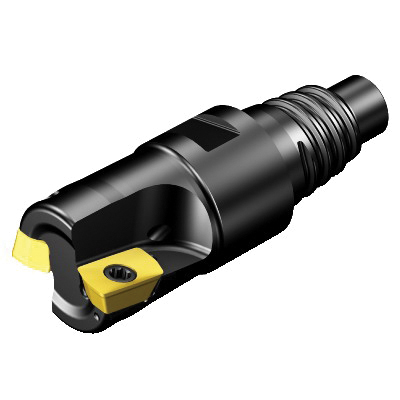

Sandvik Coromant 6416910 CoroMill® 390 Square Shoulder Milling Cutter, R390..EH Insert, 1.2598 in Cutting, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6416910 CoroMill® 390 Square Shoulder Milling Cutter, R390..EH Insert, 1.2598 in Cutting, Right Hand
SKU1230354
MFGR #6416910
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1.2598 in Cutting Dia, 2.5196 in Overall Length, 0.6181 in Maximum Depth of Cut, R390..EH Insert, 3 Inserts, Insert Compatibility: R390-17, 0.9527 in Shank Dia, Right Hand Cutting, ANSI Code: R390-032EH25-17M, ISO Code: R390-032EH25-17M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1.2598 in Cutting Dia, 2.5196 in Overall Length, 0.6181 in Maximum Depth of Cut, R390..EH Insert, 3 Inserts, Insert Compatibility: R390-17, 0.9527 in Shank Dia, Right Hand Cutting, ANSI Code: R390-032EH25-17M, ISO Code: R390-032EH25-17M, Steel
Alternate Catalog Number R390-032EH25-17M ANSI Code R390-032EH25-17M Catalog Number 6416910 Country of Origin SE Gross Weight Per Pack 0.3100 lb Head Length Right Hand Insert Gage Screw Square ISO Code R390-032EH25-17M Item Group 440 Material Steel Series CoroMill® 390 Type Square UPC 11 69826275727 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 1.2598 in Cutting Direction Right Hand Insert Compatibility R390-17 Insert Style R390..EH Maximum Depth of Cut 0.6181 in Number of Inserts 3 Overall Length 2.5196 in Shank Diameter 0.9527 in Shank Length 3 Shank Type R390-032EH25-17M 1.5 mm D plunge Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 32 mm Dia maximum cutting 90 deg cutting edge 40 mm overhang 6.7 deg maximum ramping 25600 r/min 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Coromant EH adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-032EH25-17M |
| ANSI Code | R390-032EH25-17M |
| Catalog Number | 6416910 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.3100 lb |
| Head Length | Right Hand |
| Insert Gage Screw | Square |
| ISO Code | R390-032EH25-17M |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 390 |
| Type | Square |
| UPC 11 | 69826275727 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 1.2598 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R390-17 |
| Insert Style | R390..EH |
| Maximum Depth of Cut | 0.6181 in |
| Number of Inserts | 3 |
| Overall Length | 2.5196 in |
| Shank Diameter | 0.9527 in |
| Shank Length | 3 |
| Shank Type | R390-032EH25-17M |
| 1.5 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 32 mm Dia maximum cutting |
| 90 deg cutting edge |
| 40 mm overhang |
| 6.7 deg maximum ramping |
| 25600 r/min |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Coromant EH adaptive interface |
