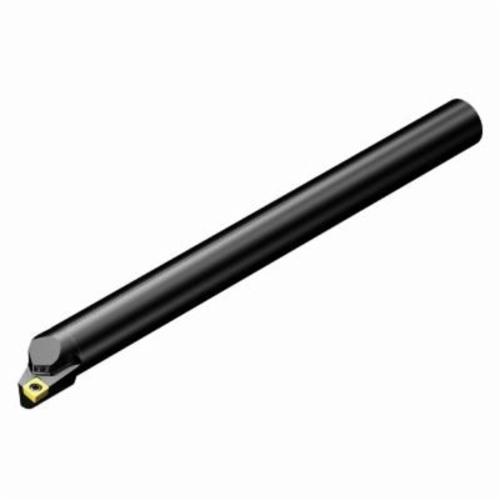

Sandvik Coromant 6404620 CoroTurn® 107 Indexable Boring Bar, 1.2007 in Min, 12 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6404620 CoroTurn® 107 Indexable Boring Bar, 1.2007 in Min, 12 in OAL, Right Hand
SKU1238298
MFGR #6404620
Your Cost: $470.40/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2007 in Minimum Bore Dia, 4 in Maximum Bore Depth, 12 in Overall Length, 1 in Shank Dia, Cylindrical Shank, Right Hand Cutting, Insert Compatibility: CCMT 09 T3 08 (MIIDM), CCMT 3(2.5)2 (MIIDN), C-80 deg Diamond Insert, 0.64 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2007 in Minimum Bore Dia, 4 in Maximum Bore Depth, 12 in Overall Length, 1 in Shank Dia, Cylindrical Shank, Right Hand Cutting, Insert Compatibility: CCMT 09 T3 08 (MIIDM), CCMT 3(2.5)2 (MIIDN), C-80 deg Diamond Insert, 0.64 in Width Offset, Steel
Alternate Catalog Number A16T-SCLCR 3HP-R Catalog Number 6404620 Country of Origin SE Gross Weight Per Pack 2.2000 lb Inscribed Circle 3/8 Insert Screw 5763169 Insert Thickness 0.156 in Item Group 210 Overall Length 12 in Series CoroTurn® 107 Shank Type Cylindrical Toolholder Style A..SCLCR..HP-R Toolholder Type A..SCLCR..HP-R UPC 11 69826274758 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility CCMT 09 T3 08, CCMT 3(2.5)2 Insert Shape 80 deg Diamond Material Steel Maximum Bore Depth 4 in Minimum Bore Diameter 1.201 in Shank Diameter 1 in Through Coolant Yes Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintainTool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip controlWhen turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finishWiper geometries available for high feeds and high quality surface finishGround, super sharp insert offer for exceptional surface finishHolders with conventional and precision coolant design 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 0 deg orthogonal rake 3988.54 lbf/sq-in coolant pressure 95 deg cutting edge -3.8342 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 3 Nm torque 40 - 60 deg insert screw clamping 3/8 in insert seat ANSI Code: A16T-SCLCR 3HP-R ISO Code: A16T-SCLCR 3HP-R
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A16T-SCLCR 3HP-R |
| Catalog Number | 6404620 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.2000 lb |
| Inscribed Circle | 3/8 |
| Insert Screw | 5763169 |
| Insert Thickness | 0.156 in |
| Item Group | 210 |
| Overall Length | 12 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical |
| Toolholder Style | A..SCLCR..HP-R |
| Toolholder Type | A..SCLCR..HP-R |
| UPC 11 | 69826274758 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | CCMT 09 T3 08, CCMT 3(2.5)2 |
| Insert Shape | 80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 4 in |
| Minimum Bore Diameter | 1.201 in |
| Shank Diameter | 1 in |
| Through Coolant | Yes |
| Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintainTool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip controlWhen turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finishWiper geometries available for high feeds and high quality surface finishGround, super sharp insert offer for exceptional surface finishHolders with conventional and precision coolant design |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 0 deg orthogonal rake |
| 3988.54 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -3.8342 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 3 Nm torque |
| 40 - 60 deg insert screw clamping |
| 3/8 in insert seat |
| ANSI Code: A16T-SCLCR 3HP-R |
| ISO Code: A16T-SCLCR 3HP-R |
