Sandvik Coromant 6404602 CoroTurn® 107 Turning Cutting Unit, 4.7244 in, 6.2204 in OAL, Left Hand, VBMT 160408 and VCMT 160408 Insert

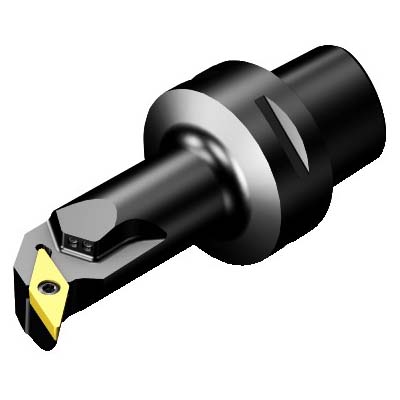

Custom_Product_Images_Illustration
Sandvik Coromant 6404602 CoroTurn® 107 Turning Cutting Unit, 4.7244 in, 6.2204 in OAL, Left Hand, VBMT 160408 and VCMT 160408 Insert
SKU1238739
MFGR #6404602
$/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 4.7244 in Head Length/Projection, 6.2204 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 4.7244 in Head Length/Projection, 6.2204 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-SVQBL-22120-16HP Catalog Number 6404602 Center to Cutting Height 94 mm Country of Origin SE Gross Weight Per Pack 3.0000 lb Head Length|Projection 120 mm Insert Style VBMT/VCMT Item Group 410 Material Steel Overall Length 158 mm Series CoroTurn® 107 UPC 11 69826275155 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 22 mm Cutting Direction Left Hand Insert Compatibility VBMT 160408, VCMT 160408 Insert Holding Method Screw Clamp Internal or External Internal System Size C6 Unobstructed chip flowExcellent chip controlExceptional surface finish 20 life cycle state 0 deg body workpiece side 32 mm Dia body Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 40 mm Dia minimum bore 107.5 deg cutting edge -10.8525 deg inclination 94 mm L usable 35 deg ramping 3 Nm torque 3/8 in insert seat size 6 mm W usable 3(2.5)2 insert size PMC, MMC, SMC chipbreaker -17.5 deg relief angle
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C6-SVQBL-22120-16HP |
| Catalog Number | 6404602 |
| Center to Cutting Height | 94 mm |
| Country of Origin | SE |
| Gross Weight Per Pack | 3.0000 lb |
| Head Length|Projection | 120 mm |
| Insert Style | VBMT/VCMT |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 158 mm |
| Series | CoroTurn® 107 |
| UPC 11 | 69826275155 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 22 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | VBMT 160408, VCMT 160408 |
| Insert Holding Method | Screw Clamp |
| Internal or External | Internal |
| System Size | C6 |
| Unobstructed chip flowExcellent chip controlExceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| 32 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 40 mm Dia minimum bore |
| 107.5 deg cutting edge |
| -10.8525 deg inclination |
| 94 mm L usable |
| 35 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 6 mm W usable |
| 3(2.5)2 insert size |
| PMC, MMC, SMC chipbreaker |
| -17.5 deg relief angle |
