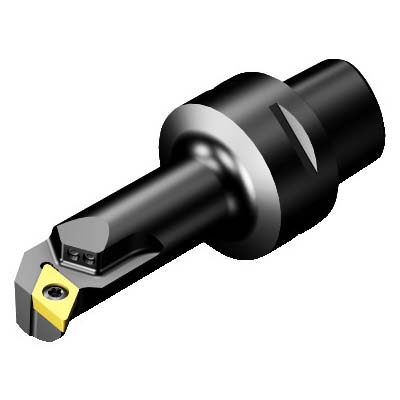

Sandvik Coromant 6404584 CoroTurn® 107 Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Right Hand, DCMT-11T308 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6404584 CoroTurn® 107 Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Right Hand, DCMT-11T308 Insert
SKU1239056
MFGR #6404584
$/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DCMT-11T308, Right Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DCMT-11T308, Right Hand Cutting, 0.5118 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-SDUCR-13080-11HP Catalog Number 6404584 Center to Cutting Height 58 mm Country of Origin SE Gross Weight Per Pack 0.9100 lb Head Length|Projection 80 mm Insert Style DCMT Item Group 410 Material Steel Overall Length 104 mm Series CoroTurn® 107 UPC 11 69826275036 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 13 mm Cutting Direction Right Hand Insert Compatibility DCMT 11T308 Insert Holding Method Screw Clamp Internal or External Internal System Size C4 Unobstructed chip flowExcellent chip controlExceptional surface finish 20 life cycle state 0 deg body workpiece side 20 mm Dia body Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral focused coolant exit with nozzles 40 mm Dia connection 25 mm Dia minimum bore 93 deg cutting edge -5.7497 deg inclination 58 mm L usable 27 deg ramping 3 Nm torque 3/8 in insert seat size 3 mm W usable -3 deg relief angle PMC, MMC, SMC chipbreaker 221 insert size
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-SDUCR-13080-11HP |
| Catalog Number | 6404584 |
| Center to Cutting Height | 58 mm |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.9100 lb |
| Head Length|Projection | 80 mm |
| Insert Style | DCMT |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 104 mm |
| Series | CoroTurn® 107 |
| UPC 11 | 69826275036 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 13 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | DCMT 11T308 |
| Insert Holding Method | Screw Clamp |
| Internal or External | Internal |
| System Size | C4 |
| Unobstructed chip flowExcellent chip controlExceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| 20 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 25 mm Dia minimum bore |
| 93 deg cutting edge |
| -5.7497 deg inclination |
| 58 mm L usable |
| 27 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 3 mm W usable |
| -3 deg relief angle |
| PMC, MMC, SMC chipbreaker |
| 221 insert size |
