Sandvik Coromant 6404567 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 3.307 in OAL, Right Hand, CCMT 09T308 Insert

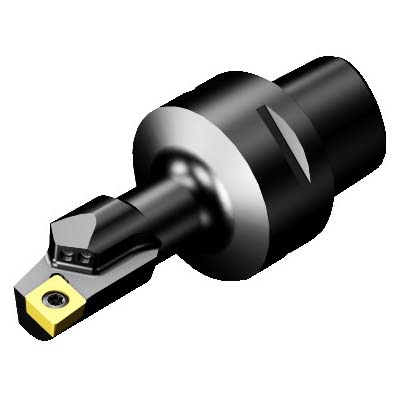

Custom_Product_Images_Illustration
Sandvik Coromant 6404567 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 3.307 in OAL, Right Hand, CCMT 09T308 Insert
SKU1238475
MFGR #6404567
$/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 3.307 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CCMT 09T308, Right Hand Cutting, 0.433 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 3.307 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CCMT 09T308, Right Hand Cutting, 0.433 in Center to Cutting Edge, Steel
Alternate Catalog Number C3-SCLCR-11065-09HP Catalog Number 6404567 Center to Cutting Height 48 mm Country of Origin SE Gross Weight Per Pack 0.4800 lb Head Length|Projection 65 mm Insert Style CCMT Item Group 410 Material Steel Overall Length 84 mm Series CoroTurn® 107 UPC 11 69826275017 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 11 mm Cutting Direction Right Hand Insert Compatibility CCMT 09T308 Insert Holding Method Screw Clamp Internal or External Internal System Size C3 Unobstructed chip flowExcellent chip controlExceptional surface finish 20 life cycle state 0 deg body workpiece side 16 mm Dia body Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral focused coolant exit with nozzles 32 mm Dia connection 21.5 mm Dia minimum bore 95 deg cutting edge -7.4701 deg inclination 48 mm L usable 0 deg ramping 3 Nm torque 3/8 in insert seat size -5 deg relief angle PMC, MMC, SMC chipbreaker 3(2.5)2 insert size Screw clamp mounting style
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C3-SCLCR-11065-09HP |
| Catalog Number | 6404567 |
| Center to Cutting Height | 48 mm |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.4800 lb |
| Head Length|Projection | 65 mm |
| Insert Style | CCMT |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 84 mm |
| Series | CoroTurn® 107 |
| UPC 11 | 69826275017 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 11 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | CCMT 09T308 |
| Insert Holding Method | Screw Clamp |
| Internal or External | Internal |
| System Size | C3 |
| Unobstructed chip flowExcellent chip controlExceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| 16 mm Dia body |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 32 mm Dia connection |
| 21.5 mm Dia minimum bore |
| 95 deg cutting edge |
| -7.4701 deg inclination |
| 48 mm L usable |
| 0 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| -5 deg relief angle |
| PMC, MMC, SMC chipbreaker |
| 3(2.5)2 insert size |
| Screw clamp mounting style |
