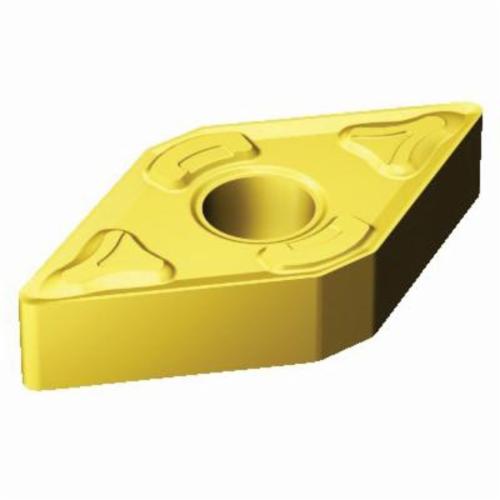

Sandvik Coromant 6353755 T-Max® P Negative Basic Shape Turning Insert, DNMG 443-XM GC30, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6353755 T-Max® P Negative Basic Shape Turning Insert, DNMG 443-XM GC30, D-55 deg Diamond, DNMG Insert
SKU1230052
MFGR #6353755
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, XM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: DNMG 443-XM GC30, ISO Code: DNMG 15 06 12-XM GC30, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, XM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: DNMG 443-XM GC30, ISO Code: DNMG 15 06 12-XM GC30, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P
ANSI Code DNMG 443-XM GC30 Catalog Number 6353755 Corner Radius 0.0468 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMG 15 06 12-XM GC30 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826273649 Width XM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XM Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 1/2 in Insert Size DNMG Insert Style DNMG Manufacturer's Grade GC30 Material Carbide Material Grade K/M/P Maximum Depth of Cut 5 mm Rake Negative Seat Size 15 Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.45 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMG 443-XM GC30 |
| Catalog Number | 6353755 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 15 06 12-XM GC30 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826273649 |
| Width | XM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | DNMG |
| Insert Style | DNMG |
| Manufacturer's Grade | GC30 |
| Material | Carbide |
| Material Grade | K/M/P |
| Maximum Depth of Cut | 5 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.45 mm/r cutting feed |
| 20 life cycle state |
