Sandvik Coromant

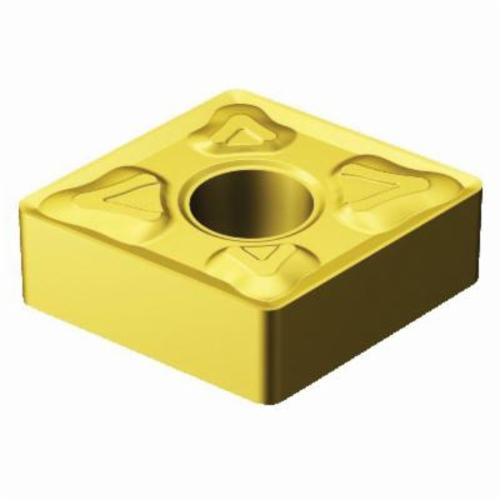

Sandvik Coromant 6353753 T-Max® P Negative Basic Shape Turning Insert, CNMG 322-XM GC30, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6353753 T-Max® P Negative Basic Shape Turning Insert, CNMG 322-XM GC30, C-80 deg Diamond, CNMG Insert
SKU1239949
MFGR #6353753
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, XM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: CNMG 322-XM GC30, ISO Code: CNMG 09 03 08-XM GC30, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, XM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: CNMG 322-XM GC30, ISO Code: CNMG 09 03 08-XM GC30, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P
Alternate Catalog Number CNMG 322-XM GC30 ANSI Code CNMG 322-XM GC30 Catalog Number 6353753 Corner Radius 0.031 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1000 lb Hole Diameter 0.15 in Included Angle 80 ° ISO Code CNMG 09 03 08-XM GC30 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/8 in UPC 11 69826273321 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XM Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 3/8 in Insert Size 322 Insert Style CNMG Manufacturer's Grade GC30 Material Carbide Material Grade K, M, P Maximum Depth of Cut 0.157 in Rake Negative Seat Size 09 Shape Rhombic Positive insert shape Low cutting forces Excellent edge strength Screw clamping ensures stability and unobstructed chip flow Tools with high pressure coolant Insert geometries and grades for all materials 0.1 - 0.35 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 322-XM GC30 |
| ANSI Code | CNMG 322-XM GC30 |
| Catalog Number | 6353753 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1000 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 09 03 08-XM GC30 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/8 in |
| UPC 11 | 69826273321 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 322 |
| Insert Style | CNMG |
| Manufacturer's Grade | GC30 |
| Material | Carbide |
| Material Grade | K, M, P |
| Maximum Depth of Cut | 0.157 in |
| Rake | Negative |
| Seat Size | 09 |
| Shape | Rhombic |
| Positive insert shape |
| Low cutting forces |
| Excellent edge strength |
| Screw clamping ensures stability and unobstructed chip flow |
| Tools with high pressure coolant |
| Insert geometries and grades for all materials |
| 0.1 - 0.35 mm/r cutting feed |
| 20 life cycle state |
