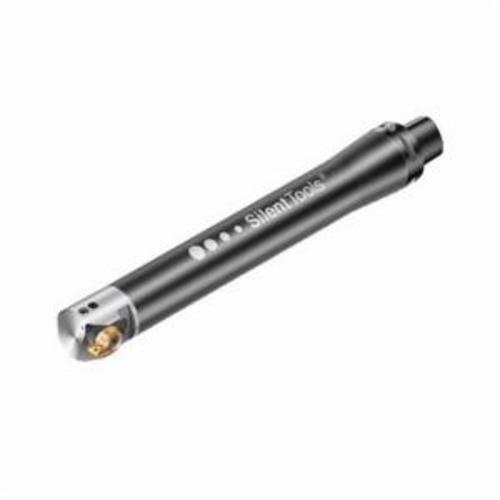

Sandvik Coromant 6352224 CoroBore® 825 Dampened Fine Boring Tool, 23 in Min, 1.1417 in Max, 8.307 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6352224 CoroBore® 825 Dampened Fine Boring Tool, 23 in Min, 1.1417 in Max, 8.307 in OAL, Right Hand
SKU1228462
MFGR #6352224
CoroBore® 825 is a flexible tool covering a large diameter range. The tools can be adjusted radially in order to cover a certain diameter range with one tool. The tools allow precision adjustment in microns in order to achieve close tolerances.
CoroBore® 825 is a flexible tool covering a large diameter range. The tools can be adjusted radially in order to cover a certain diameter range with one tool. The tools allow precision adjustment in microns in order to achieve close tolerances.
Catalog Number 6352224 Country of Origin NL Finish Dampened Gross Weight Per Pack 1.3600 lb Insert Screw 5513 020-44 Insert Shape Triangle Insert Thickness 5/64 in Overall Length 8.307 in Series CoroBore® 825 Shank Diameter 1.2598 in Shank Type TCMT 06 T1 02 Type Dampened UPC 11 69826274344 Warranty 5727139 Adaptor, 5747981 Cartridge, 5764035 Key, 5764138 Key and 5765206 Slide Extension Width Offset 32 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility TCMT 06 T1 02 Material Steel Maximum Bore Diameter 1.1417 in Maximum Bore Depth 211 mm Minimum Bore Diameter 23 in Bolt and segment clamping machine side adaptive interface 2 mm adjustment increment 3 mm adjustment limit 21 mm Dia body 4.8 deg body half taper 1 cutting item Axial concentric and radial coolant entry 70 bar coolant Axial inclined coolant exit EFW feed direction 0 deg orthogonal rake 92 deg cutting edge 0 deg inclination 173 mm L body 192 mm L functional 192 mm L protruding 192 mm overhang 8304 r/min 0.6 Nm torque 825D..TC-Cx (2) tool style
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6352224 |
| Country of Origin | NL |
| Finish | Dampened |
| Gross Weight Per Pack | 1.3600 lb |
| Insert Screw | 5513 020-44 |
| Insert Shape | Triangle |
| Insert Thickness | 5/64 in |
| Overall Length | 8.307 in |
| Series | CoroBore® 825 |
| Shank Diameter | 1.2598 in |
| Shank Type | TCMT 06 T1 02 |
| Type | Dampened |
| UPC 11 | 69826274344 |
| Warranty | 5727139 Adaptor, 5747981 Cartridge, 5764035 Key, 5764138 Key and 5765206 Slide Extension |
| Width Offset | 32 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | TCMT 06 T1 02 |
| Material | Steel |
| Maximum Bore Diameter | 1.1417 in |
| Maximum Bore Depth | 211 mm |
| Minimum Bore Diameter | 23 in |
| Bolt and segment clamping machine side adaptive interface |
| 2 mm adjustment increment |
| 3 mm adjustment limit |
| 21 mm Dia body |
| 4.8 deg body half taper |
| 1 cutting item |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| EFW feed direction |
| 0 deg orthogonal rake |
| 92 deg cutting edge |
| 0 deg inclination |
| 173 mm L body |
| 192 mm L functional |
| 192 mm L protruding |
| 192 mm overhang |
| 8304 r/min |
| 0.6 Nm torque |
| 825D..TC-Cx (2) tool style |
