Sandvik Coromant

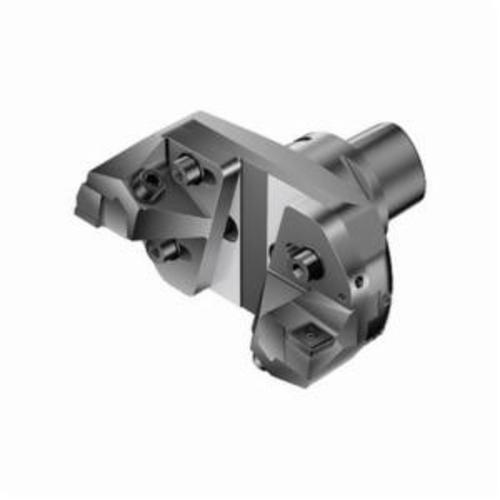

Sandvik Coromant 6352154 CoroBore® 820 XL Rough Boring Tool, 9.7637 in Min, 11.811 in Max, 7.4015 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6352154 CoroBore® 820 XL Rough Boring Tool, 9.7637 in Min, 11.811 in Max, 7.4015 in OAL, Right Hand
SKU1228296
MFGR #6352154
Your Cost: $4,800.38/ea
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
Alternate Catalog Number 820-300SP18-C10 Catalog Number 6352154 Country of Origin NL Gross Weight Per Pack 25.3200 lb Insert Screw 188 mm Insert Shape Square Insert Thickness 7/32 in Item Group 530 Overall Length 7.4015 in Series CoroBore® 820 XL Shank Diameter 3.937 in Shank Type 5757635 Key, 5758337 Key, 5764133 Key, 6352041 Adaptor, 6352042 Slide and 6352044 Cartridge Type CoroBore® 820 XL UPC 11 69826274192 Width Offset 100 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility 880-0906W08H-P-GM Material Steel Maximum Bore Diameter 11.811 in Maximum Bore Depth 100 mm Minimum Bore Diameter 9.7637 in Bolt and segment clamping machine side adaptive interface 1.5 - 26 mm adjustment limit 2 cutting items Axial concentric and radial coolant entry 70 bar coolant Axial inclined coolant exit EFW feed direction 5 deg orthogonal rake 52 mm H support 90 deg cutting edge -6 deg inclination 128 mm L functional 128 mm L protruding 104 mm H 128 mm overhang 1541 r/min 3 Nm torque 820..SP-Cx (XL) tool style 1200 m/min maximum cutting Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 820-300SP18-C10 |
| Catalog Number | 6352154 |
| Country of Origin | NL |
| Gross Weight Per Pack | 25.3200 lb |
| Insert Screw | 188 mm |
| Insert Shape | Square |
| Insert Thickness | 7/32 in |
| Item Group | 530 |
| Overall Length | 7.4015 in |
| Series | CoroBore® 820 XL |
| Shank Diameter | 3.937 in |
| Shank Type | 5757635 Key, 5758337 Key, 5764133 Key, 6352041 Adaptor, 6352042 Slide and 6352044 Cartridge |
| Type | CoroBore® 820 XL |
| UPC 11 | 69826274192 |
| Width Offset | 100 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | 880-0906W08H-P-GM |
| Material | Steel |
| Maximum Bore Diameter | 11.811 in |
| Maximum Bore Depth | 100 mm |
| Minimum Bore Diameter | 9.7637 in |
| Bolt and segment clamping machine side adaptive interface |
| 1.5 - 26 mm adjustment limit |
| 2 cutting items |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| EFW feed direction |
| 5 deg orthogonal rake |
| 52 mm H support |
| 90 deg cutting edge |
| -6 deg inclination |
| 128 mm L functional |
| 128 mm L protruding |
| 104 mm H |
| 128 mm overhang |
| 1541 r/min |
| 3 Nm torque |
| 820..SP-Cx (XL) tool style |
| 1200 m/min maximum cutting |
| Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring |
