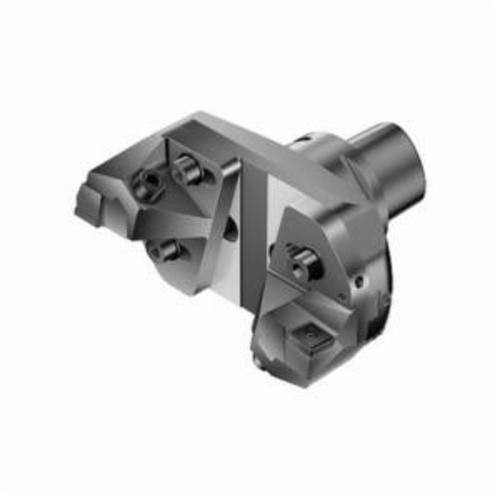

Sandvik Coromant 6352151 CoroBore® 820 XL Rough Boring Tool, 7.7952 in Min, 9.8425 in Max, 6.6929 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6352151 CoroBore® 820 XL Rough Boring Tool, 7.7952 in Min, 9.8425 in Max, 6.6929 in OAL, Right Hand
SKU1228315
MFGR #6352151
Your Cost: $4,384.57/ea
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
Alternate Catalog Number 820-250SP18-C8 Catalog Number 6352151 Country of Origin NL Gross Weight Per Pack 18.1700 lb Insert Screw 170 mm Insert Shape Square Insert Thickness 7/32 in Item Group 530 Overall Length 6.6929 in Series CoroBore® 820 XL Shank Diameter 3.1496 in Shank Type S-Square Type CoroBore® 820 XL UPC 11 69826274185 Width Offset 80 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility 880-0906W08H-P-GM Material Steel Maximum Bore Diameter 9.8425 in Maximum Bore Depth 5757635 Key, 5758337 Key, 5764133 Key, 6352007 Adaptor, 6352042 Slide and 6352044 Cartridge Minimum Bore Diameter 7.7952 in Bolt and segment clamping machine side adaptive interface 1.5 - 26 mm adjustment limit 2 cutting items Axial concentric and radial coolant entry 70 bar coolant Axial inclined coolant exit EFW feed direction 5 deg orthogonal rake 52 mm H support 90 deg cutting edge -6 deg inclination 122 mm L functional 122 mm L protruding 104 mm H 122 mm overhang 1930 r/min 3 Nm torque 820..SP-Cx (XL) tool style 1200 m/min maximum cutting Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 820-250SP18-C8 |
| Catalog Number | 6352151 |
| Country of Origin | NL |
| Gross Weight Per Pack | 18.1700 lb |
| Insert Screw | 170 mm |
| Insert Shape | Square |
| Insert Thickness | 7/32 in |
| Item Group | 530 |
| Overall Length | 6.6929 in |
| Series | CoroBore® 820 XL |
| Shank Diameter | 3.1496 in |
| Shank Type | S-Square |
| Type | CoroBore® 820 XL |
| UPC 11 | 69826274185 |
| Width Offset | 80 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | 880-0906W08H-P-GM |
| Material | Steel |
| Maximum Bore Diameter | 9.8425 in |
| Maximum Bore Depth | 5757635 Key, 5758337 Key, 5764133 Key, 6352007 Adaptor, 6352042 Slide and 6352044 Cartridge |
| Minimum Bore Diameter | 7.7952 in |
| Bolt and segment clamping machine side adaptive interface |
| 1.5 - 26 mm adjustment limit |
| 2 cutting items |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| EFW feed direction |
| 5 deg orthogonal rake |
| 52 mm H support |
| 90 deg cutting edge |
| -6 deg inclination |
| 122 mm L functional |
| 122 mm L protruding |
| 104 mm H |
| 122 mm overhang |
| 1930 r/min |
| 3 Nm torque |
| 820..SP-Cx (XL) tool style |
| 1200 m/min maximum cutting |
| Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring |
