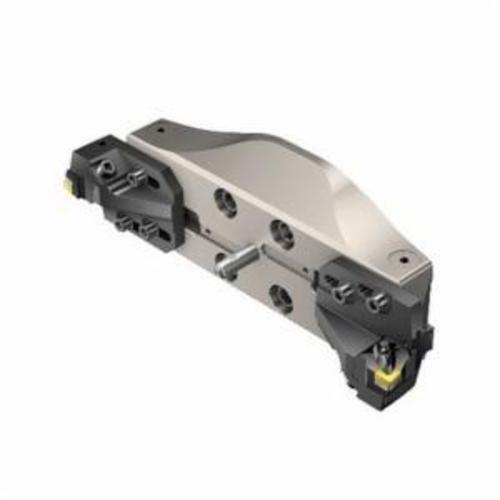

Sandvik Coromant 6352143 CoroBore® 820 XL Rough Boring Tool, 11.7323 in Min, 14.9606 in Max, 4.4881 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6352143 CoroBore® 820 XL Rough Boring Tool, 11.7323 in Min, 14.9606 in Max, 4.4881 in OAL, Right Hand
SKU1228301
MFGR #6352143
$/ea
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
Catalog Number 6352143 Country of Origin NL Gross Weight Per Pack 19.9500 lb Insert Screw 114 mm Insert Shape Square Insert Thickness 1/4 in Overall Length 4.4881 in Series CoroBore® 820 XL Shank Diameter 1.5748 in Shank Type S-Square Type CoroBore® 820 XL UPC 11 69826274197 Width Offset 40 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Cutting Direction Right Hand Insert Compatibility SNMG 15 06 08 Material Aluminum/Steel Maximum Bore Diameter 14.9606 in Maximum Bore Depth 40 mm Minimum Bore Diameter 11.7323 in 1.5 - 41 mm adjustment limit 2 cutting items Axial concentric coolant entry 70 bar coolant Axial inclined coolant exit 101.6 mm Dia bolt circle EFW feed direction -6 deg orthogonal rake 52 mm H support 84 deg cutting edge -7 deg inclination 114 mm L functional 114 mm L protruding 164 mm H 114 mm overhang 1282 r/min 6.4 Nm torque 820..SN (XL) tool style 1200 m/min maximum cutting Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6352143 |
| Country of Origin | NL |
| Gross Weight Per Pack | 19.9500 lb |
| Insert Screw | 114 mm |
| Insert Shape | Square |
| Insert Thickness | 1/4 in |
| Overall Length | 4.4881 in |
| Series | CoroBore® 820 XL |
| Shank Diameter | 1.5748 in |
| Shank Type | S-Square |
| Type | CoroBore® 820 XL |
| UPC 11 | 69826274197 |
| Width Offset | 40 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Cutting Direction | Right Hand |
| Insert Compatibility | SNMG 15 06 08 |
| Material | Aluminum/Steel |
| Maximum Bore Diameter | 14.9606 in |
| Maximum Bore Depth | 40 mm |
| Minimum Bore Diameter | 11.7323 in |
| 1.5 - 41 mm adjustment limit |
| 2 cutting items |
| Axial concentric coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 101.6 mm Dia bolt circle |
| EFW feed direction |
| -6 deg orthogonal rake |
| 52 mm H support |
| 84 deg cutting edge |
| -7 deg inclination |
| 114 mm L functional |
| 114 mm L protruding |
| 164 mm H |
| 114 mm overhang |
| 1282 r/min |
| 6.4 Nm torque |
| 820..SN (XL) tool style |
| 1200 m/min maximum cutting |
| Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring |
