Sandvik Coromant

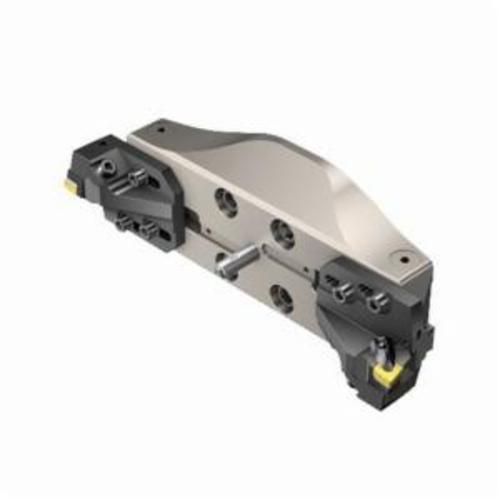

Sandvik Coromant 6352132 CoroBore® 820 XL Rough Boring Tool, 14.8819 in Min, 18.1102 in Max, 4.685 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6352132 CoroBore® 820 XL Rough Boring Tool, 14.8819 in Min, 18.1102 in Max, 4.685 in OAL, Right Hand
SKU1228342
MFGR #6352132
Your Cost: $5,064.04/ea
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
Alternate Catalog Number 820-460CN19 Catalog Number 6352132 Country of Origin NL Gross Weight Per Pack 23.8300 lb Insert Screw 119 mm Insert Shape C-80 deg Diamond Insert Thickness 1/4 in Item Group 530 Overall Length 4.685 in Series CoroBore® 820 XL Shank Diameter 1.5748 in Shank Type C-80 deg Diamond Type CoroBore® 820 XL UPC 11 69826274204 Width Offset 40 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CNMG 19 06 12 Material Aluminum/Steel Maximum Bore Diameter 18.1102 in Maximum Bore Depth 40 mm Minimum Bore Diameter 14.8819 in 1.5 - 41 mm adjustment limit 2 cutting items Axial concentric coolant entry 70 bar coolant Axial inclined coolant exit 101.6 mm Dia bolt circle EFW feed direction -6 deg orthogonal rake 52 mm H support 90 deg cutting edge -7 deg inclination 119 mm L functional 119 mm L protruding 164 mm H 119 mm overhang 1011 r/min 6.4 Nm torque 820..CN (XL) tool style 1200 m/min maximum cutting Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 820-460CN19 |
| Catalog Number | 6352132 |
| Country of Origin | NL |
| Gross Weight Per Pack | 23.8300 lb |
| Insert Screw | 119 mm |
| Insert Shape | C-80 deg Diamond |
| Insert Thickness | 1/4 in |
| Item Group | 530 |
| Overall Length | 4.685 in |
| Series | CoroBore® 820 XL |
| Shank Diameter | 1.5748 in |
| Shank Type | C-80 deg Diamond |
| Type | CoroBore® 820 XL |
| UPC 11 | 69826274204 |
| Width Offset | 40 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 19 06 12 |
| Material | Aluminum/Steel |
| Maximum Bore Diameter | 18.1102 in |
| Maximum Bore Depth | 40 mm |
| Minimum Bore Diameter | 14.8819 in |
| 1.5 - 41 mm adjustment limit |
| 2 cutting items |
| Axial concentric coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 101.6 mm Dia bolt circle |
| EFW feed direction |
| -6 deg orthogonal rake |
| 52 mm H support |
| 90 deg cutting edge |
| -7 deg inclination |
| 119 mm L functional |
| 119 mm L protruding |
| 164 mm H |
| 119 mm overhang |
| 1011 r/min |
| 6.4 Nm torque |
| 820..CN (XL) tool style |
| 1200 m/min maximum cutting |
| Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring |
