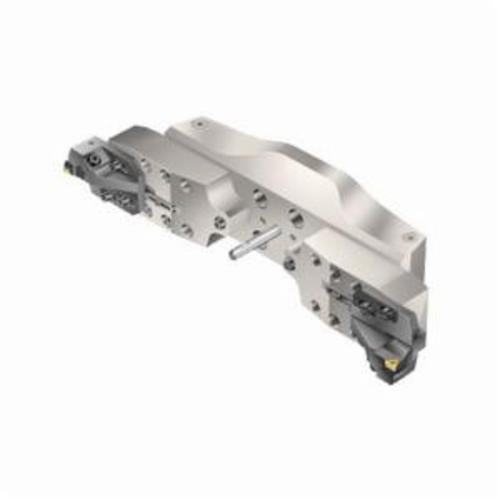

Sandvik Coromant 6352123 CoroBore® 820 XL Rough Boring Tool, 30.6299 in Min, 40.1575 in Max, 8.5826 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6352123 CoroBore® 820 XL Rough Boring Tool, 30.6299 in Min, 40.1575 in Max, 8.5826 in OAL, Right Hand
SKU1228893
MFGR #6352123
Your Cost: $7,633.22/ea
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
Alternate Catalog Number 820-1020TC22 Catalog Number 6352123 Country of Origin US Finish 5757635 Key, 5757836 Key, 5758337 Key, 5758338 Key, 5758340 Key, 5764133 Key, 5924270 Stop Plate Set, 5924275 Bridge Extension, 5924279 Bridge, 5924291 Cartridge and 5924293 Slide Gross Weight Per Pack 79.8600 lb Insert Screw 218 mm Insert Shape Triangle Insert Thickness 3/16 in Item Group 530 Overall Length 8.5826 in Series CoroBore® 820 XL Shank Diameter 1.5748 in Shank Type T-Triangular Type CoroBore® 820 XL UPC 11 69826274155 Width Offset 40 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility TCMT 22 04 08 Material Aluminum/Steel Maximum Bore Diameter 40.1575 in Maximum Bore Depth 40 mm Minimum Bore Diameter 30.6299 in 1.5 - 121 mm adjustment limit 2 cutting items Axial concentric coolant entry 70 bar coolant Axial inclined coolant exit 101.6 mm Dia bolt circle EFW feed direction 0 deg orthogonal rake 52 mm H support 90 deg cutting edge 0 deg inclination 218 mm L functional 218 mm L protruding 164 mm H 218 mm overhang 491 r/min 3 Nm torque 820..TC (XL-EXT) tool style 1200 m/min maximum cutting Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 820-1020TC22 |
| Catalog Number | 6352123 |
| Country of Origin | US |
| Finish | 5757635 Key, 5757836 Key, 5758337 Key, 5758338 Key, 5758340 Key, 5764133 Key, 5924270 Stop Plate Set, 5924275 Bridge Extension, 5924279 Bridge, 5924291 Cartridge and 5924293 Slide |
| Gross Weight Per Pack | 79.8600 lb |
| Insert Screw | 218 mm |
| Insert Shape | Triangle |
| Insert Thickness | 3/16 in |
| Item Group | 530 |
| Overall Length | 8.5826 in |
| Series | CoroBore® 820 XL |
| Shank Diameter | 1.5748 in |
| Shank Type | T-Triangular |
| Type | CoroBore® 820 XL |
| UPC 11 | 69826274155 |
| Width Offset | 40 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | TCMT 22 04 08 |
| Material | Aluminum/Steel |
| Maximum Bore Diameter | 40.1575 in |
| Maximum Bore Depth | 40 mm |
| Minimum Bore Diameter | 30.6299 in |
| 1.5 - 121 mm adjustment limit |
| 2 cutting items |
| Axial concentric coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 101.6 mm Dia bolt circle |
| EFW feed direction |
| 0 deg orthogonal rake |
| 52 mm H support |
| 90 deg cutting edge |
| 0 deg inclination |
| 218 mm L functional |
| 218 mm L protruding |
| 164 mm H |
| 218 mm overhang |
| 491 r/min |
| 3 Nm torque |
| 820..TC (XL-EXT) tool style |
| 1200 m/min maximum cutting |
| Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring |
