Sandvik Coromant
Sandvik Coromant 6352051 CoroBore® 825 SL Screw Mount With Internal Coolant Channel, S20, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant

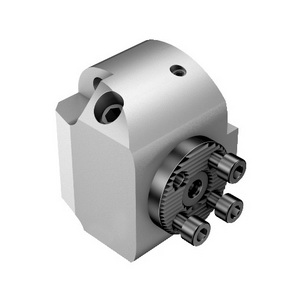

Sandvik Coromant 6352051 CoroBore® 825 SL Screw Mount With Internal Coolant Channel, S20, Right Hand
SKU1229921
MFGR #6352051
Your Cost: $1,741.05/ea
CoroBore® 825 is a flexible tool covering a large diameter range. The tools can be adjusted radially in order to cover a certain diameter range with one tool. The tools allow precision adjustment in microns in order to achieve close tolerances.
CoroBore® 825 is a flexible tool covering a large diameter range. The tools can be adjusted radially in order to cover a certain diameter range with one tool. The tools allow precision adjustment in microns in order to achieve close tolerances.
Alternate Catalog Number S20-R825SL32 020 Bore Diameter S20 Catalog Number 6352051 Center to Cutting Edge Steel/Aluminum Country of Origin DE Finish S20 Gross Weight Per Pack 0.9700 lb Head Diameter 1.2598 in Item Group 530 Series CoroBore® 825 Type SL Screw Mount UPC 11 69826273766 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Head Length|Projection 0.7874 in Insert Compatibility SL Screw Mounted Insert Style Steel/Aluminum Material Aluminum/Steel System Size S20 Cartridge designed for highest stability Slide extension for increased diameter range and back boring Cutting fluid through the tool Applicable on H, K, M, N, P and S material grades Compatible with 825-150SL32-C6 and 825-150SL32-C8 Coromant Capto® to CoroTurn® SL adjustable adapter IT6 hole tolerance 46.8 mm OAL 32.05 mm W functional Axial concentric on circle coolant entry Axial inclined coolant exit 24 mm H functional 70 bar coolant ISO Code: S20-R825SL32 020 ANSI Code: S20-R825SL32 020 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | S20-R825SL32 020 |
| Bore Diameter | S20 |
| Catalog Number | 6352051 |
| Center to Cutting Edge | Steel/Aluminum |
| Country of Origin | DE |
| Finish | S20 |
| Gross Weight Per Pack | 0.9700 lb |
| Head Diameter | 1.2598 in |
| Item Group | 530 |
| Series | CoroBore® 825 |
| Type | SL Screw Mount |
| UPC 11 | 69826273766 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Head Length|Projection | 0.7874 in |
| Insert Compatibility | SL Screw Mounted |
| Insert Style | Steel/Aluminum |
| Material | Aluminum/Steel |
| System Size | S20 |
| Cartridge designed for highest stability |
| Slide extension for increased diameter range and back boring |
| Cutting fluid through the tool |
| Applicable on H, K, M, N, P and S material grades |
| Compatible with 825-150SL32-C6 and 825-150SL32-C8 Coromant Capto® to CoroTurn® SL adjustable adapter |
| IT6 hole tolerance |
| 46.8 mm OAL |
| 32.05 mm W functional |
| Axial concentric on circle coolant entry |
| Axial inclined coolant exit |
| 24 mm H functional |
| 70 bar coolant |
| ISO Code: S20-R825SL32 020 |
| ANSI Code: S20-R825SL32 020 |
| 20 life cycle state |
