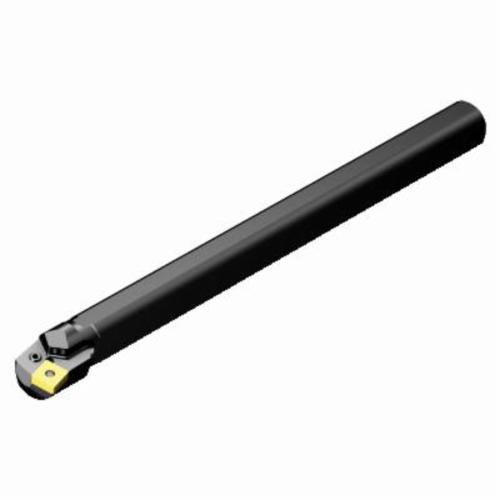

Sandvik Coromant 6339975 T-Max® P Indexable Boring Bar, 1.5315 in Min, 12 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6339975 T-Max® P Indexable Boring Bar, 1.5315 in Min, 12 in OAL, Right Hand
SKU1239534
MFGR #6339975
Your Cost: $578.30/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.5315 in Minimum Bore Dia, 5 in Maximum Bore Depth, 12 in Overall Length, 1-1/4 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: SNMG 12 04 08 (MIIDM), SNMG 432 (MIIDN), Square Insert, 3/8 in Insert Inscribed Circle, 0.187 in Insert Thickness, 0.89 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.5315 in Minimum Bore Dia, 5 in Maximum Bore Depth, 12 in Overall Length, 1-1/4 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: SNMG 12 04 08 (MIIDM), SNMG 432 (MIIDN), Square Insert, 3/8 in Insert Inscribed Circle, 0.187 in Insert Thickness, 0.89 in Width Offset, Steel
Catalog Number 6339975 Country of Origin US Gross Weight Per Pack 3.8400 lb Insert Thickness 0.187 in Overall Length 12.12 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PSKNR..HP UPC 11 69826273049 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility SNMG 12 04 08 Insert Shape Square Material Steel Maximum Bore Depth 5 in Minimum Bore Diameter 1.532 in Shank Diameter 1-1/4 in Through Coolant Yes Stable and secure clampingChip control and process securityExcellent surface finish 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 30 mm H shank -6 deg orthogonal rake 3988.54 lbf/sq-in coolant pressure 75 deg cutting edge -10 deg inclination 20 life cycle state Coolant through 15 deg lead 0 deg maximum ramping 5 Nm torque Lever hole clamping 1/2 in insert seat ANSI Code: A20T-PSKNR4HP ISO Code: A20T-PSKNR4HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6339975 |
| Country of Origin | US |
| Gross Weight Per Pack | 3.8400 lb |
| Insert Thickness | 0.187 in |
| Overall Length | 12.12 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PSKNR..HP |
| UPC 11 | 69826273049 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | SNMG 12 04 08 |
| Insert Shape | Square |
| Material | Steel |
| Maximum Bore Depth | 5 in |
| Minimum Bore Diameter | 1.532 in |
| Shank Diameter | 1-1/4 in |
| Through Coolant | Yes |
| Stable and secure clampingChip control and process securityExcellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 30 mm H shank |
| -6 deg orthogonal rake |
| 3988.54 lbf/sq-in coolant pressure |
| 75 deg cutting edge |
| -10 deg inclination |
| 20 life cycle state |
| Coolant through |
| 15 deg lead |
| 0 deg maximum ramping |
| 5 Nm torque |
| Lever hole clamping |
| 1/2 in insert seat |
| ANSI Code: A20T-PSKNR4HP |
| ISO Code: A20T-PSKNR4HP |
