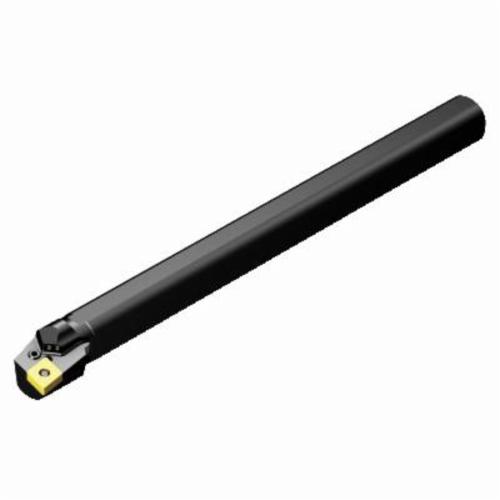

Sandvik Coromant 6339955 T-Max® P Indexable Boring Bar, 1 in Min, 10 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6339955 T-Max® P Indexable Boring Bar, 1 in Min, 10 in OAL, Right Hand
SKU1238230
MFGR #6339955
Your Cost: $711.08/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1 in Minimum Bore Dia, 3 in Maximum Bore Depth, 10 in Overall Length, 3/4 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CNMG 09 03 08 (MIIDM), CNMG 322 (MIIDN), C-80 deg Diamond Insert, 1/2 in Insert Inscribed Circle, 0.187 in Insert Thickness, 1/2 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1 in Minimum Bore Dia, 3 in Maximum Bore Depth, 10 in Overall Length, 3/4 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CNMG 09 03 08 (MIIDM), CNMG 322 (MIIDN), C-80 deg Diamond Insert, 1/2 in Insert Inscribed Circle, 0.187 in Insert Thickness, 1/2 in Width Offset, Steel
Alternate Catalog Number A12S-PCLNR3HP Catalog Number 6339955 Country of Origin US Gross Weight Per Pack 1.1400 lb Inscribed Circle 3/8 Insert Thickness 1/8 in Item Group 210 Overall Length 10 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PCLNR..HP Toolholder Type A..PCLNR..HP UPC 11 69826272983 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility CNMG 09 03 08 Insert Shape 80 deg Diamond Material Steel Maximum Bore Depth 3 in Minimum Bore Diameter 1 in Shank Diameter 3/4 in Through Coolant Yes Stable and secure clampingChip control and process securityExcellent surface finish 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 18 mm H shank -6 deg orthogonal rake 3988.54 lbf/sq-in coolant pressure 95 deg cutting edge -11 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 2 Nm torque Lever hole clamping 3/8 in insert seat ANSI Code: A12S-PCLNR3HP ISO Code: A12S-PCLNR3HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A12S-PCLNR3HP |
| Catalog Number | 6339955 |
| Country of Origin | US |
| Gross Weight Per Pack | 1.1400 lb |
| Inscribed Circle | 3/8 |
| Insert Thickness | 1/8 in |
| Item Group | 210 |
| Overall Length | 10 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PCLNR..HP |
| Toolholder Type | A..PCLNR..HP |
| UPC 11 | 69826272983 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | CNMG 09 03 08 |
| Insert Shape | 80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 3 in |
| Minimum Bore Diameter | 1 in |
| Shank Diameter | 3/4 in |
| Through Coolant | Yes |
| Stable and secure clampingChip control and process securityExcellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 18 mm H shank |
| -6 deg orthogonal rake |
| 3988.54 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -11 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 2 Nm torque |
| Lever hole clamping |
| 3/8 in insert seat |
| ANSI Code: A12S-PCLNR3HP |
| ISO Code: A12S-PCLNR3HP |
