Sandvik Coromant

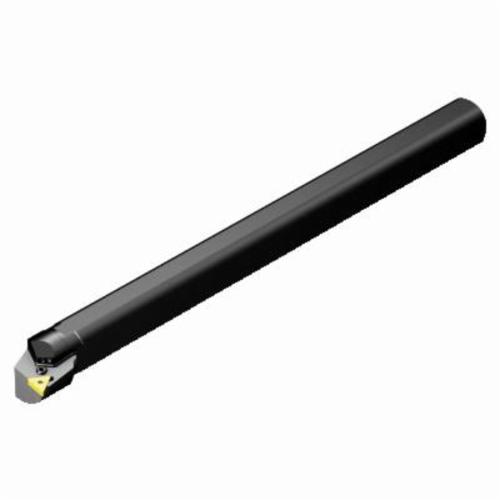

Sandvik Coromant 6339954 T-Max® P Indexable Boring Bar, 1.0629 in Min, 8 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6339954 T-Max® P Indexable Boring Bar, 1.0629 in Min, 8 in OAL, Left Hand
SKU1238225
MFGR #6339954
Your Cost: $507.53/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.0629 in Minimum Bore Dia, 2-1/2 in Maximum Bore Depth, 8 in Overall Length, 5/8 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: TNMG 11 03 04 (MIIDM), TNMG 221 (MIIDN), Triangle Insert, 1/2 in Insert Inscribed Circle, 0.187 in Insert Thickness, 0.4059 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.0629 in Minimum Bore Dia, 2-1/2 in Maximum Bore Depth, 8 in Overall Length, 5/8 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: TNMG 11 03 04 (MIIDM), TNMG 221 (MIIDN), Triangle Insert, 1/2 in Insert Inscribed Circle, 0.187 in Insert Thickness, 0.4059 in Width Offset, Steel
Catalog Number 6339954 Country of Origin US Gross Weight Per Pack 0.6200 lb Insert Thickness 1/8 in Overall Length 8 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PTFNL..HP UPC 11 69826272963 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility TNMG 11 03 04 Insert Shape Triangle Material Steel Maximum Bore Depth 2-1/2 in Minimum Bore Diameter 1.063 in Shank Diameter 5/8 in Through Coolant Yes Stable and secure clampingChip control and process securityExcellent surface finish 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 15 mm H shank -6 deg orthogonal rake 3988.54 lbf/sq-in coolant pressure 91 deg cutting edge -14 deg inclination 20 life cycle state Coolant through -1 deg lead 0 deg maximum ramping 1.2 Nm torque Lever hole clamping 1/4 in insert seat ANSI Code: A10R-PTFNL2HP ISO Code: A10R-PTFNL2HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6339954 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.6200 lb |
| Insert Thickness | 1/8 in |
| Overall Length | 8 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PTFNL..HP |
| UPC 11 | 69826272963 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Left |
| Insert Compatibility | TNMG 11 03 04 |
| Insert Shape | Triangle |
| Material | Steel |
| Maximum Bore Depth | 2-1/2 in |
| Minimum Bore Diameter | 1.063 in |
| Shank Diameter | 5/8 in |
| Through Coolant | Yes |
| Stable and secure clampingChip control and process securityExcellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 15 mm H shank |
| -6 deg orthogonal rake |
| 3988.54 lbf/sq-in coolant pressure |
| 91 deg cutting edge |
| -14 deg inclination |
| 20 life cycle state |
| Coolant through |
| -1 deg lead |
| 0 deg maximum ramping |
| 1.2 Nm torque |
| Lever hole clamping |
| 1/4 in insert seat |
| ANSI Code: A10R-PTFNL2HP |
| ISO Code: A10R-PTFNL2HP |
