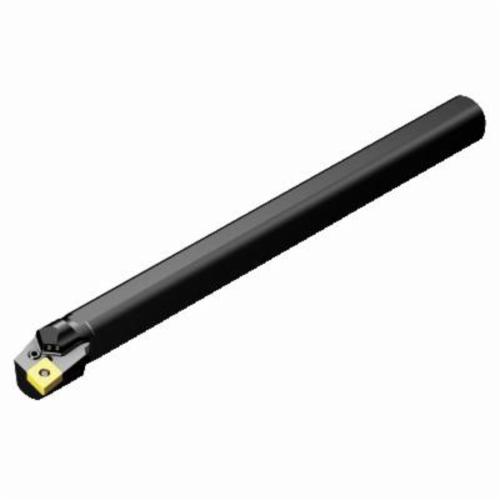

Sandvik Coromant 6339939 T-Max® P Indexable Boring Bar, 1.9685 in Min, 11.811 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6339939 T-Max® P Indexable Boring Bar, 1.9685 in Min, 11.811 in OAL, Right Hand
SKU1238953
MFGR #6339939
Your Cost: $903.37/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.9685 in Minimum Bore Dia, 6.2992 in Maximum Bore Depth, 11.811 in Overall Length, 1.5748 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CNMG 12 04 08 (MIIDM), CNMG 432 (MIIDN), C-80 deg Diamond Insert, 3/8 in Insert Inscribed Circle, 1/8 in Insert Thickness, 1.0629 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.9685 in Minimum Bore Dia, 6.2992 in Maximum Bore Depth, 11.811 in Overall Length, 1.5748 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CNMG 12 04 08 (MIIDM), CNMG 432 (MIIDN), C-80 deg Diamond Insert, 3/8 in Insert Inscribed Circle, 1/8 in Insert Thickness, 1.0629 in Width Offset, Steel
Alternate Catalog Number A40T-PCLNR12HP Catalog Number 6339939 Country of Origin SE Gross Weight Per Pack 6.5400 lb Inscribed Circle 1/2 Insert Thickness 0.187 in Item Group 210 Overall Length 11.811 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PCLNR..HP Toolholder Type A..PCLNR..HP UPC 11 69826273120 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility CNMG 12 04 08 Insert Shape 80 deg Diamond Material Steel Maximum Bore Depth 6.299 in Minimum Bore Diameter 1.969 in Shank Diameter 1.575 in Through Coolant Yes Stable and secure clampingChip control and process securityExcellent surface finish 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 37 mm H shank -6 deg orthogonal rake 3988.54 lbf/sq-in coolant pressure 95 deg cutting edge -10 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 5 Nm torque Lever hole clamping 1/2 in insert seat ANSI Code: A40T-PCLNR12HP ISO Code: A40T-PCLNR12HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A40T-PCLNR12HP |
| Catalog Number | 6339939 |
| Country of Origin | SE |
| Gross Weight Per Pack | 6.5400 lb |
| Inscribed Circle | 1/2 |
| Insert Thickness | 0.187 in |
| Item Group | 210 |
| Overall Length | 11.811 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PCLNR..HP |
| Toolholder Type | A..PCLNR..HP |
| UPC 11 | 69826273120 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | CNMG 12 04 08 |
| Insert Shape | 80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 6.299 in |
| Minimum Bore Diameter | 1.969 in |
| Shank Diameter | 1.575 in |
| Through Coolant | Yes |
| Stable and secure clampingChip control and process securityExcellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 37 mm H shank |
| -6 deg orthogonal rake |
| 3988.54 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -10 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 5 Nm torque |
| Lever hole clamping |
| 1/2 in insert seat |
| ANSI Code: A40T-PCLNR12HP |
| ISO Code: A40T-PCLNR12HP |
