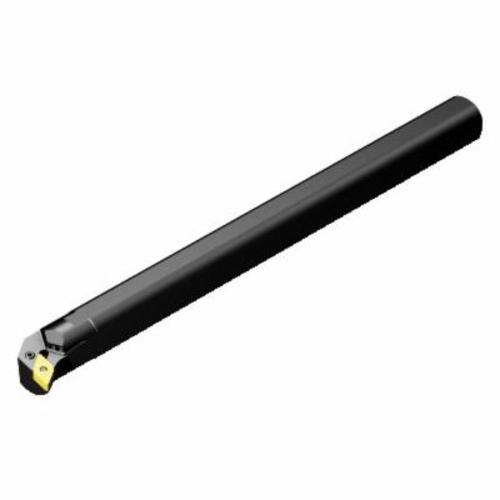

Sandvik Coromant 6339926 T-Max® P Indexable Boring Bar, 1.2598 in Min, 11.811 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6339926 T-Max® P Indexable Boring Bar, 1.2598 in Min, 11.811 in OAL, Left Hand
SKU1239413
MFGR #6339926
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.2598 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.9842 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: DNMG 11 04 08 (MIIDM), DNMG 332 (MIIDN), D-55 deg Diamond Insert, 1/2 in Insert Inscribed Circle, 0.187 in Insert Thickness, 0.6692 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.2598 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.9842 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: DNMG 11 04 08 (MIIDM), DNMG 332 (MIIDN), D-55 deg Diamond Insert, 1/2 in Insert Inscribed Circle, 0.187 in Insert Thickness, 0.6692 in Width Offset, Steel
Alternate Catalog Number A25T-PDUNL11HP Catalog Number 6339926 Country of Origin SE Gross Weight Per Pack 2.0900 lb Insert Thickness 0.187 in Item Group 210 Overall Length 11.811 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PDUNL..HP UPC 11 69826273062 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility DNMG 11 04 08 Insert Shape 55 deg Diamond Material Steel Maximum Bore Depth 3.937 in Minimum Bore Diameter 1.26 in Shank Diameter 0.984 in Through Coolant Yes Stable and secure clampingChip control and process securityExcellent surface finish 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 23 mm H shank -6 deg orthogonal rake 3988.54 lbf/sq-in coolant pressure 93 deg cutting edge -11 deg inclination 20 life cycle state Coolant through -3 deg lead 27 deg maximum ramping 2 Nm torque Lever hole clamping 3/8 in insert seat ANSI Code: A25T-PDUNL11HP ISO Code: A25T-PDUNL11HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A25T-PDUNL11HP |
| Catalog Number | 6339926 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.0900 lb |
| Insert Thickness | 0.187 in |
| Item Group | 210 |
| Overall Length | 11.811 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PDUNL..HP |
| UPC 11 | 69826273062 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Left |
| Insert Compatibility | DNMG 11 04 08 |
| Insert Shape | 55 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 3.937 in |
| Minimum Bore Diameter | 1.26 in |
| Shank Diameter | 0.984 in |
| Through Coolant | Yes |
| Stable and secure clampingChip control and process securityExcellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 23 mm H shank |
| -6 deg orthogonal rake |
| 3988.54 lbf/sq-in coolant pressure |
| 93 deg cutting edge |
| -11 deg inclination |
| 20 life cycle state |
| Coolant through |
| -3 deg lead |
| 27 deg maximum ramping |
| 2 Nm torque |
| Lever hole clamping |
| 3/8 in insert seat |
| ANSI Code: A25T-PDUNL11HP |
| ISO Code: A25T-PDUNL11HP |
