Sandvik Coromant 6336352 CoroDrill® 800, 800-06 T3 08M-I-G 4235, Rectangular, 0.433 in 800..M-I-G Insert, 8 mm Inscribed Circle, 0.1562 in THK, 800-06 T3 08M-I-G 4235

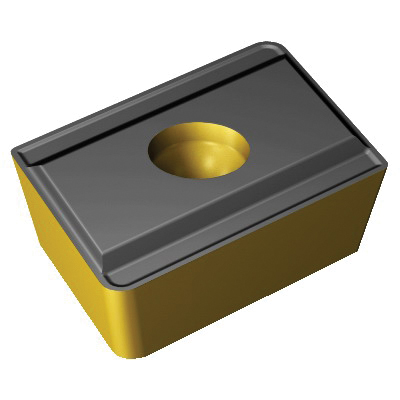

Custom_Product_Images_Illustration
Sandvik Coromant 6336352 CoroDrill® 800, 800-06 T3 08M-I-G 4235, Rectangular, 0.433 in 800..M-I-G Insert, 8 mm Inscribed Circle, 0.1562 in THK, 800-06 T3 08M-I-G 4235
SKU1228622
MFGR #6336352
Your Cost: $18.86/ea
List: Sandvik Coromant Drilling Insert, Series: CoroDrill® 800, 800..M-I-G Insert, 0.433 in Insert, Rectangular, 8 mm Inscribed Circle, 0.1562 in Thickness, 1/4 in Width, G Chipbreaker, 0.0314 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: 800-06 T3 08M-I-G 4235, Right Hand, ISO Code: 800-06 T3 08M-I-G 4235, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Drilling Insert, Series: CoroDrill® 800, 800..M-I-G Insert, 0.433 in Insert, Rectangular, 8 mm Inscribed Circle, 0.1562 in Thickness, 1/4 in Width, G Chipbreaker, 0.0314 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: 800-06 T3 08M-I-G 4235, Right Hand, ISO Code: 800-06 T3 08M-I-G 4235, Carbide, MTCVD Coated, Material Grade: M
ANSI Code 800-06 T3 08M-I-G 4235 Catalog Number 6336352 Country of Origin SE Drilling Application Asymmetrical Point Finish MTCVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 0.1102 in Included Angle G ISO Code 800-06 T3 08M-I-G 4235 Length CoroDrill® 800 Thickness 0.1562 in Type 6.35 mm UPC 11 69826276258 Width 1/4 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker G Corner Radius 0.0314 in For Use On Stainless Steel Inscribed Circle 8 mm Insert Size 0.433 in Insert Style 800..M-I-G Manufacturer's Grade 4235 Material Carbide Material Grade M Series CoroDrill® 800 Shape Rectangular 17 deg clearance 20 life cycle state 40 - 60 deg countersunk hole and non-flat surface E cutting edge condition Positive rake Peripheral insert position Screw clamp mounting 0.031 in nose radius I insert usage code 06 insert seat size code M tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 800-06 T3 08M-I-G 4235 |
| Catalog Number | 6336352 |
| Country of Origin | SE |
| Drilling Application | Asymmetrical Point |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| Included Angle | G |
| ISO Code | 800-06 T3 08M-I-G 4235 |
| Length | CoroDrill® 800 |
| Thickness | 0.1562 in |
| Type | 6.35 mm |
| UPC 11 | 69826276258 |
| Width | 1/4 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | G |
| Corner Radius | 0.0314 in |
| For Use On | Stainless Steel |
| Inscribed Circle | 8 mm |
| Insert Size | 0.433 in |
| Insert Style | 800..M-I-G |
| Manufacturer's Grade | 4235 |
| Material | Carbide |
| Material Grade | M |
| Series | CoroDrill® 800 |
| Shape | Rectangular |
| 17 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole and non-flat surface |
| E cutting edge condition |
| Positive rake |
| Peripheral insert position |
| Screw clamp mounting |
| 0.031 in nose radius |
| I insert usage code |
| 06 insert seat size code |
| M tolerance class insert |
