Sandvik Coromant
Sandvik Coromant 6336267 CoroDrill® 800, 800-08 T3 08M-C-L 1025, Rectangular, 800..M-C-L Insert, 9 mm Inscribed Circle, 0.1562 in THK, 800-08 T3 08M-C-L 1025

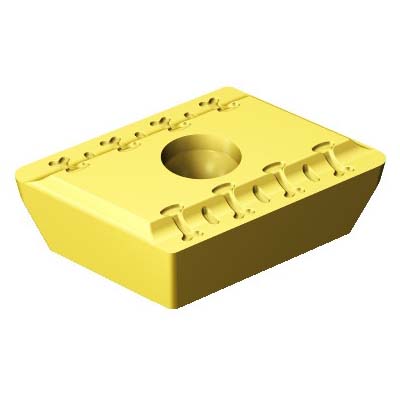

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6336267 CoroDrill® 800, 800-08 T3 08M-C-L 1025, Rectangular, 800..M-C-L Insert, 9 mm Inscribed Circle, 0.1562 in THK, 800-08 T3 08M-C-L 1025
SKU1233385
MFGR #6336267
Your Cost: $18.86/ea
List: Sandvik Coromant Drilling Insert, Series: CoroDrill® 800, 800..M-C-L Insert, Rectangular, 9 mm Inscribed Circle, 0.1562 in Thickness, 5/16 in Width, L Chipbreaker, 0.0314 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: 800-08 T3 08M-C-L 1025, Right Hand, ISO Code: 800-08 T3 08M-C-L 1025, Carbide, PVD Coated, Material Grade: K/M/N/O/P
Sandvik Coromant Drilling Insert, Series: CoroDrill® 800, 800..M-C-L Insert, Rectangular, 9 mm Inscribed Circle, 0.1562 in Thickness, 5/16 in Width, L Chipbreaker, 0.0314 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: 800-08 T3 08M-C-L 1025, Right Hand, ISO Code: 800-08 T3 08M-C-L 1025, Carbide, PVD Coated, Material Grade: K/M/N/O/P
ANSI Code 800-08 T3 08M-C-L 1025 Catalog Number 6336267 Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1102 in Included Angle 800-08 T3 08M-C-L 1025 ISO Code 800-08 T3 08M-C-L 1025 Length 9 mm Thickness 0.1562 in Type 7.94 mm Width 5/16 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker L Corner Radius 0.0314 in Inscribed Circle 9 mm Insert Size L Insert Style 800..M-C-L Manufacturer's Grade 1025 Material Carbide Material Grade K/M/N/O/P Series CoroDrill® 800 Shape Rectangular 17 deg clearance 20 life cycle state 40 - 60 deg countersunk hole and non-flat surface E cutting edge condition Positive rake C insert usage code 08 insert seat size code M tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 800-08 T3 08M-C-L 1025 |
| Catalog Number | 6336267 |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| Included Angle | 800-08 T3 08M-C-L 1025 |
| ISO Code | 800-08 T3 08M-C-L 1025 |
| Length | 9 mm |
| Thickness | 0.1562 in |
| Type | 7.94 mm |
| Width | 5/16 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | L |
| Corner Radius | 0.0314 in |
| Inscribed Circle | 9 mm |
| Insert Size | L |
| Insert Style | 800..M-C-L |
| Manufacturer's Grade | 1025 |
| Material | Carbide |
| Material Grade | K/M/N/O/P |
| Series | CoroDrill® 800 |
| Shape | Rectangular |
| 17 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole and non-flat surface |
| E cutting edge condition |
| Positive rake |
| C insert usage code |
| 08 insert seat size code |
| M tolerance class insert |
