Sandvik Coromant 6332209, TPGX 24 05 12R-L 4235, Triangle, TPGX..R/L-L Insert, 0.559 in Inscribed Circle, 0.2165 in THK, TPGX 24 05 12R-L 4235

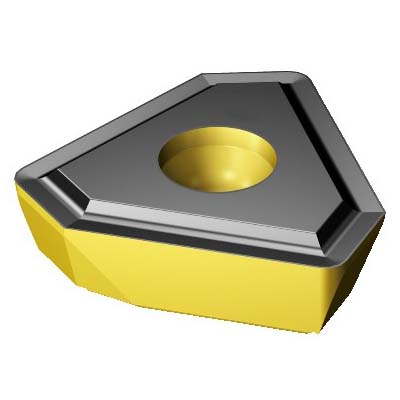

Custom_Product_Images_Illustration
Sandvik Coromant 6332209, TPGX 24 05 12R-L 4235, Triangle, TPGX..R/L-L Insert, 0.559 in Inscribed Circle, 0.2165 in THK, TPGX 24 05 12R-L 4235
SKU1230534
MFGR #6332209
Your Cost: $21.27/ea
List: Sandvik Coromant Drilling Insert, TPGX..R/L-L Insert, Triangle, 0.559 in Inscribed Circle, 0.2165 in Thickness, 0.6807 in Width, L Chipbreaker, 0.0472 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: TPGX 24 05 12R-L 4235, Right Hand, ISO Code: TPGX 24 05 12R-L 4235, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Drilling Insert, TPGX..R/L-L Insert, Triangle, 0.559 in Inscribed Circle, 0.2165 in Thickness, 0.6807 in Width, L Chipbreaker, 0.0472 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: TPGX 24 05 12R-L 4235, Right Hand, ISO Code: TPGX 24 05 12R-L 4235, Carbide, MTCVD Coated, Material Grade: M
ANSI Code TPGX 24 05 12R-L 4235 Catalog Number 6332209 Country of Origin US Drilling Application Asymmetrical Point Finish MTCVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Right Hole Diameter 0.1732 in Included Angle 17.291 mm ISO Code TPGX 24 05 12R-L 4235 Length MTCVD Coated Thickness 0.2165 in Type Carbide UPC 11 69826273831 Width 0.6807 in Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker L Corner Radius 0.0472 in For Use On Stainless Steel Inscribed Circle 0.559 in Insert Size 17.291 mm Insert Style TPGX..R/L-L Manufacturer's Grade 4235 Material Carbide Material Grade M Series TPGX..R/L-L Shape Triangle 11 deg clearance 20 life cycle state 40 - 60 deg countersunk hole and non-flat surface E cutting edge condition Positive rake Peripheral and center insert position For use with push and pull counterboring tool P+C insert usage code 24 insert seat size code G tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | TPGX 24 05 12R-L 4235 |
| Catalog Number | 6332209 |
| Country of Origin | US |
| Drilling Application | Asymmetrical Point |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1732 in |
| Included Angle | 17.291 mm |
| ISO Code | TPGX 24 05 12R-L 4235 |
| Length | MTCVD Coated |
| Thickness | 0.2165 in |
| Type | Carbide |
| UPC 11 | 69826273831 |
| Width | 0.6807 in |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | L |
| Corner Radius | 0.0472 in |
| For Use On | Stainless Steel |
| Inscribed Circle | 0.559 in |
| Insert Size | 17.291 mm |
| Insert Style | TPGX..R/L-L |
| Manufacturer's Grade | 4235 |
| Material | Carbide |
| Material Grade | M |
| Series | TPGX..R/L-L |
| Shape | Triangle |
| 11 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole and non-flat surface |
| E cutting edge condition |
| Positive rake |
| Peripheral and center insert position |
| For use with push and pull counterboring tool |
| P+C insert usage code |
| 24 insert seat size code |
| G tolerance class insert |
