Sandvik Coromant

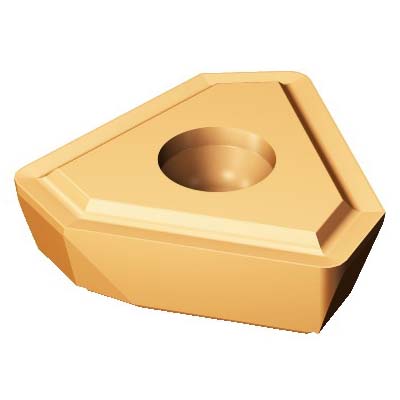

Sandvik Coromant 6332203, TPGX 17 04 08R-L 1125, Triangle, TPGX..R/L-L Insert, 0.4055 in Inscribed Circle, 0.1574 in THK, TPGX 17 04 08R-L 1125
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6332203, TPGX 17 04 08R-L 1125, Triangle, TPGX..R/L-L Insert, 0.4055 in Inscribed Circle, 0.1574 in THK, TPGX 17 04 08R-L 1125
SKU1230565
MFGR #6332203
Your Cost: $15.72/ea
List: Sandvik Coromant Drilling Insert, TPGX..R/L-L Insert, Triangle, 0.4055 in Inscribed Circle, 0.1574 in Thickness, 0.487 in Width, L Chipbreaker, 0.0314 in Corner Radius, 0.1535 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: TPGX 17 04 08R-L 1125, Right Hand, ISO Code: TPGX 17 04 08R-L 1125, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Drilling Insert, TPGX..R/L-L Insert, Triangle, 0.4055 in Inscribed Circle, 0.1574 in Thickness, 0.487 in Width, L Chipbreaker, 0.0314 in Corner Radius, 0.1535 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: TPGX 17 04 08R-L 1125, Right Hand, ISO Code: TPGX 17 04 08R-L 1125, Carbide, PVD Coated, Material Grade: S
ANSI Code TPGX 17 04 08R-L 1125 Catalog Number 6332203 Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Right Hole Diameter 0.1535 in Included Angle 3.9 mm ISO Code TPGX 17 04 08R-L 1125 Length 12.371 mm Thickness 0.1574 in Type Right UPC 11 69826273814 Width 0.487 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker L Corner Radius 0.0314 in Inscribed Circle 0.4055 in Insert Size Carbide Insert Style TPGX..R/L-L Manufacturer's Grade 1125 Material Carbide Material Grade S Series TPGX..R/L-L Shape Triangle 11 deg clearance 20 life cycle state 40 - 60 deg countersunk hole and non-flat surface E cutting edge condition Positive rake Peripheral and center insert position For use with push and pull counterboring tool P+C insert usage code 17 insert seat size code G tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | TPGX 17 04 08R-L 1125 |
| Catalog Number | 6332203 |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1535 in |
| Included Angle | 3.9 mm |
| ISO Code | TPGX 17 04 08R-L 1125 |
| Length | 12.371 mm |
| Thickness | 0.1574 in |
| Type | Right |
| UPC 11 | 69826273814 |
| Width | 0.487 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | L |
| Corner Radius | 0.0314 in |
| Inscribed Circle | 0.4055 in |
| Insert Size | Carbide |
| Insert Style | TPGX..R/L-L |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | S |
| Series | TPGX..R/L-L |
| Shape | Triangle |
| 11 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole and non-flat surface |
| E cutting edge condition |
| Positive rake |
| Peripheral and center insert position |
| For use with push and pull counterboring tool |
| P+C insert usage code |
| 17 insert seat size code |
| G tolerance class insert |
