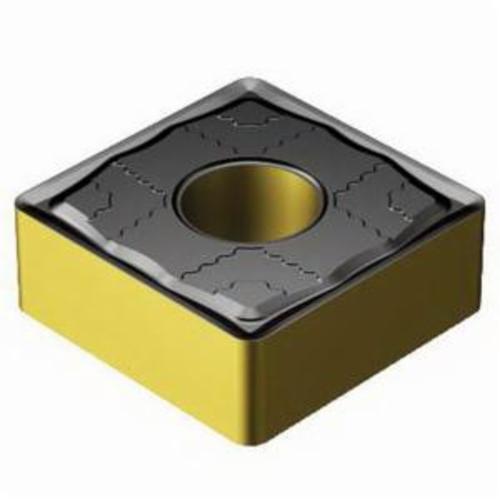

Sandvik Coromant 6328281 T-Max® P 2-Sided Turning Insert, SNMG 431-PMC 4225, S-Square, SNMG-PMC Insert, 4225, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 6328281 T-Max® P 2-Sided Turning Insert, SNMG 431-PMC 4225, S-Square, SNMG-PMC Insert, 4225, Carbide
SKU1230145
MFGR #6328281
$/ea
T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
ANSI Code SNMG 431-PMC 4225 Catalog Number 6328281 Corner Radius 0.0156 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 90 deg ISO Code SNMG 12 04 04-PMC 4225 Length 1/2 in Relief Angle 2 mm Series T-Max® P Thickness 0.1874 in Type 2-Sided UPC 11 69826273739 Width SNMG 12 04 04-PMC 4225 Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PMC Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size SNMG-PMC Insert Style SNMG-PMC Manufacturer's Grade 4225 Material Carbide Material Grade P Maximum Depth of Cut 2 mm Rake Negative Seat Size 12 Shape S-Square 0 deg major clearance E cutting edge condition 8 cutting edges Straight hole and non-flat surface clamping interface 12.3 mm L effective cutting edge M tolerance class 0.1 - 0.4 mm/r cutting feed 40 life cycle state Negative basic shape inserts for high-performance turning Double sided inserts with strong edges Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility Precision nozzles and optimized geometries for high precision coolant machining Dedicated grades and geometries for all applications and materials Productive solution with wiper and Xcel technologies Tools featuring high precision coolant for excellent chip breaking Reliable and secure machining, even in roughing applications Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling 0 deg rake Top and hole clamping mount
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | SNMG 431-PMC 4225 |
| Catalog Number | 6328281 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 deg |
| ISO Code | SNMG 12 04 04-PMC 4225 |
| Length | 1/2 in |
| Relief Angle | 2 mm |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | 2-Sided |
| UPC 11 | 69826273739 |
| Width | SNMG 12 04 04-PMC 4225 |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PMC |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | SNMG-PMC |
| Insert Style | SNMG-PMC |
| Manufacturer's Grade | 4225 |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | 2 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | S-Square |
| 0 deg major clearance |
| E cutting edge condition |
| 8 cutting edges |
| Straight hole and non-flat surface clamping interface |
| 12.3 mm L effective cutting edge |
| M tolerance class |
| 0.1 - 0.4 mm/r cutting feed |
| 40 life cycle state |
| Negative basic shape inserts for high-performance turning |
| Double sided inserts with strong edges |
| Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility |
| Precision nozzles and optimized geometries for high precision coolant machining |
| Dedicated grades and geometries for all applications and materials |
| Productive solution with wiper and Xcel technologies |
| Tools featuring high precision coolant for excellent chip breaking |
| Reliable and secure machining, even in roughing applications |
| Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling |
| 0 deg rake |
| Top and hole clamping mount |
