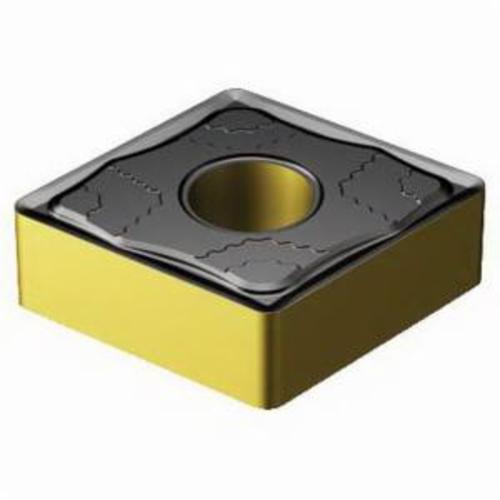

Sandvik Coromant 6328214 T-Max® P 2-Sided Turning Insert, CNMG 431-PMC 4225, C-80 deg Diamond, CNMG-PMC Insert, 4225, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 6328214 T-Max® P 2-Sided Turning Insert, CNMG 431-PMC 4225, C-80 deg Diamond, CNMG-PMC Insert, 4225, Carbide
SKU1239970
MFGR #6328214
Your Cost: $15.75/ea
List: T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
ANSI Code CNMG 431-PMC 4225 Catalog Number 6328214 Corner Radius 0.016 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2300 lb Hole Diameter 0.2029 in Included Angle 80 ° ISO Code CNMG 12 04 04-PMC 4225 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826273322 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PMC Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size 431 Insert Style CNMG Manufacturer's Grade 4225 Material Carbide Material Grade K, P Maximum Depth of Cut 0.118 in Rake Negative Seat Size 12 Shape Rhombic 0 deg major clearance E cutting edge condition 4 cutting edges Straight hole and non-flat surface clamping interface 12.49 mm L effective cutting edge M tolerance class 0.1 - 0.4 mm/r cutting feed 40 life cycle state Negative basic shape inserts for high-performance turning Double sided inserts with strong edges Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility Precision nozzles and optimized geometries for high precision coolant machining Dedicated grades and geometries for all applications and materials Productive solution with wiper and Xcel technologies Tools featuring high precision coolant for excellent chip breaking Reliable and secure machining, even in roughing applications Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 431-PMC 4225 |
| Catalog Number | 6328214 |
| Corner Radius | 0.016 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 04-PMC 4225 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826273322 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PMC |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 431 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4225 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.118 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| 0 deg major clearance |
| E cutting edge condition |
| 4 cutting edges |
| Straight hole and non-flat surface clamping interface |
| 12.49 mm L effective cutting edge |
| M tolerance class |
| 0.1 - 0.4 mm/r cutting feed |
| 40 life cycle state |
| Negative basic shape inserts for high-performance turning |
| Double sided inserts with strong edges |
| Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility |
| Precision nozzles and optimized geometries for high precision coolant machining |
| Dedicated grades and geometries for all applications and materials |
| Productive solution with wiper and Xcel technologies |
| Tools featuring high precision coolant for excellent chip breaking |
| Reliable and secure machining, even in roughing applications |
| Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling |
