Sandvik Coromant

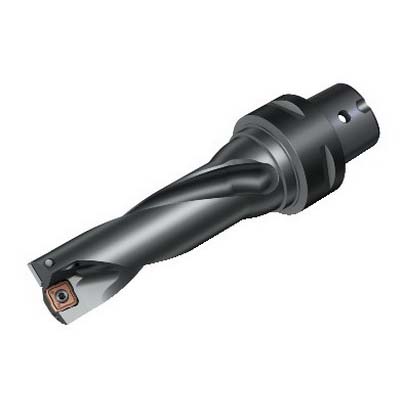

Sandvik Coromant 6328003 CoroDrill® 880 Insert Drill, 1-1/8 in Drill, 1.5748 in Shank, 6.1328 in AOL, 3-3/8 in D Maximum Drill, 3
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6328003 CoroDrill® 880 Insert Drill, 1-1/8 in Drill, 1.5748 in Shank, 6.1328 in AOL, 3-3/8 in D Maximum Drill, 3
SKU1239666
MFGR #6328003
Your Cost: $1,109.21/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1-1/8 in Drill, 1.5748 in Shank Dia, 3-3/8 in Maximum Drill Depth, 6.1328 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-050305H-C-GM (MIIDM) and 880-0503W05H-P-GM (MIIDM), 3-3/8 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 1-1/8 in Drill, 1.5748 in Shank Dia, 3-3/8 in Maximum Drill Depth, 6.1328 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 880-050305H-C-GM (MIIDM) and 880-0503W05H-P-GM (MIIDM), 3-3/8 in Flute Length
Alternate Catalog Number A880-D1125C4-03 Catalog Number 6328003 Country of Origin SE Drill Depth by Diameter Ratio 3XD Gross Weight Per Pack 1.4600 lb Item Group 465 Modular Connection Size C4 Number of Drill Inserts 2 Overall Length 6.133 in Series CoroDrill® 880 Standards ISO 13399 UPC 11 69826273235 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 1-1/8 in Drill Size 1-1/8 in Flute Length 3.504 in Insert Compatibility 880-050305H-C-GM (MIIDM), 880-0503W05H-P-GM (MIIDM) Maximum Drill Depth 3-3/8 in Shank Diameter 1.575 in Shank Length 0.9663 in Shank Type Coromant Capto® Through Coolant Yes Wiper geometry for best surface finish or higher feed possibilitiesEasy identification due to laser marking with drill insert and screw codes on the drill shankTwo or four cutting edges depending on drill diameterOptimized chip channels for accelerated chip evacuationOptimized geometries assure high performance in most materialsOptimized grades assure longer insert tool life 28.575 mm Dia body 0.5442 mm L point 16000 r/min 0 - 0.25 mm achievable hole tolerance Axial concentric and radial coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 22 deg right hand helix flute 5 deg rake orthogonal 0 deg inclination, 2 flutes 88 deg cutting edge 105.7402 mm L chip flute 20 life cycle state 89.0016 mm L steel body Features the new Sandvik Coromant innovation, Step technology Closer hole tolerances
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A880-D1125C4-03 |
| Catalog Number | 6328003 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 3XD |
| Gross Weight Per Pack | 1.4600 lb |
| Item Group | 465 |
| Modular Connection Size | C4 |
| Number of Drill Inserts | 2 |
| Overall Length | 6.133 in |
| Series | CoroDrill® 880 |
| Standards | ISO 13399 |
| UPC 11 | 69826273235 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 1-1/8 in |
| Drill Size | 1-1/8 in |
| Flute Length | 3.504 in |
| Insert Compatibility | 880-050305H-C-GM (MIIDM), 880-0503W05H-P-GM (MIIDM) |
| Maximum Drill Depth | 3-3/8 in |
| Shank Diameter | 1.575 in |
| Shank Length | 0.9663 in |
| Shank Type | Coromant Capto® |
| Through Coolant | Yes |
| Wiper geometry for best surface finish or higher feed possibilitiesEasy identification due to laser marking with drill insert and screw codes on the drill shankTwo or four cutting edges depending on drill diameterOptimized chip channels for accelerated chip evacuationOptimized geometries assure high performance in most materialsOptimized grades assure longer insert tool life |
| 28.575 mm Dia body |
| 0.5442 mm L point |
| 16000 r/min |
| 0 - 0.25 mm achievable hole tolerance |
| Axial concentric and radial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 22 deg right hand helix flute |
| 5 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 105.7402 mm L chip flute |
| 20 life cycle state |
| 89.0016 mm L steel body |
| Features the new Sandvik Coromant innovation, Step technology |
| Closer hole tolerances |
