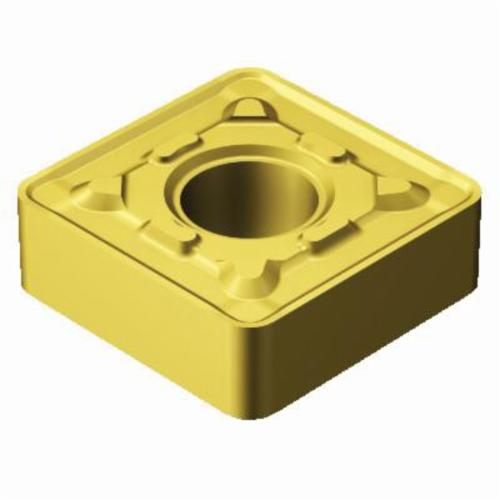

Sandvik Coromant 6293020 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-MRR 2025, S-Square, SNMG Insert, 2025, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 6293020 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-MRR 2025, S-Square, SNMG Insert, 2025, Carbide
SKU1135545
MFGR #6293020
Your Cost: $39.22/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, MRR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG 644-MRR 2025, ISO Code: SNMG 19 06 16-MRR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, MRR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG 644-MRR 2025, ISO Code: SNMG 19 06 16-MRR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number SNMG 644-MRR 2025 ANSI Code SNMG 644-MRR 2025 Catalog Number 6293020 Corner Radius 0.0624 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0700 lb Hand of Insert Neutral Hole Diameter 0.312 in Included Angle 90 deg ISO Code SNMG 19 06 16-MRR 2025 Item Group 110 Length 3/4 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826273757 UPC 12 69826273757 Width MRR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MRR Inscribed Circle 3/4 in Insert Size 6.35 mm Insert Style SNMG Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 10 mm Shape S-Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.3 - 0.75 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 644-MRR 2025 |
| ANSI Code | SNMG 644-MRR 2025 |
| Catalog Number | 6293020 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0700 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.312 in |
| Included Angle | 90 deg |
| ISO Code | SNMG 19 06 16-MRR 2025 |
| Item Group | 110 |
| Length | 3/4 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826273757 |
| UPC 12 | 69826273757 |
| Width | MRR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MRR |
| Inscribed Circle | 3/4 in |
| Insert Size | 6.35 mm |
| Insert Style | SNMG |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 10 mm |
| Shape | S-Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.3 - 0.75 mm/r cutting feed |
| 20 life cycle state |
