Sandvik Coromant

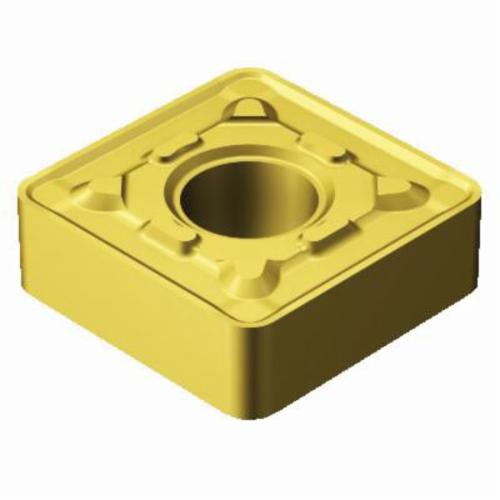

Sandvik Coromant 6293012 T-Max® P Negative Basic Shape Turning Insert, SNMG 543-MRR 2025, S-Square, SNMG Insert, 2025
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6293012 T-Max® P Negative Basic Shape Turning Insert, SNMG 543-MRR 2025, S-Square, SNMG Insert, 2025
SKU1230166
MFGR #6293012
Your Cost: $28.07/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG 543-MRR 2025, ISO Code: SNMG 15 06 12-MRR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG 543-MRR 2025, ISO Code: SNMG 15 06 12-MRR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number SNMG 543-MRR 2025 ANSI Code SNMG 543-MRR 2025 Catalog Number 6293012 Corner Radius 0.0468 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 90 deg ISO Code SNMG 15 06 12-MRR 2025 Item Group 110 Length 5/8 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826273748 Width 6.35 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MRR Inscribed Circle 5/8 in Insert Size 15.87 mm Insert Style SNMG Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 8 mm Shape S-Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.65 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 543-MRR 2025 |
| ANSI Code | SNMG 543-MRR 2025 |
| Catalog Number | 6293012 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 90 deg |
| ISO Code | SNMG 15 06 12-MRR 2025 |
| Item Group | 110 |
| Length | 5/8 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826273748 |
| Width | 6.35 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MRR |
| Inscribed Circle | 5/8 in |
| Insert Size | 15.87 mm |
| Insert Style | SNMG |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 8 mm |
| Shape | S-Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.65 mm/r cutting feed |
| 20 life cycle state |
