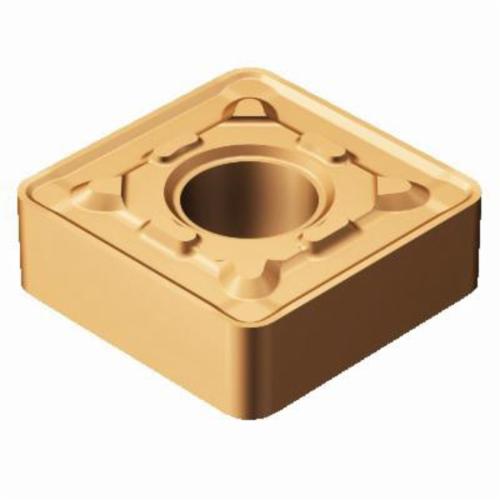

Sandvik Coromant 6293010 T-Max® P Negative Basic Shape Turning Insert, SNMG 543-MRR 1115, S-Square, SNMG Insert, 1115
Custom_Product_Images_Illustration
Sandvik Coromant 6293010 T-Max® P Negative Basic Shape Turning Insert, SNMG 543-MRR 1115, S-Square, SNMG Insert, 1115
SKU1230164
MFGR #6293010
Your Cost: $21.24/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: SNMG 543-MRR 1115, ISO Code: SNMG 15 06 12-MRR 1115, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: SNMG 543-MRR 1115, ISO Code: SNMG 15 06 12-MRR 1115, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
ANSI Code SNMG 543-MRR 1115 Catalog Number 6293010 Corner Radius 0.0468 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 90 deg ISO Code SNMG 15 06 12-MRR 1115 Length 5/8 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826273746 Width MRR Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MRR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 5/8 in Insert Size S - Square Insert Style SNMG Manufacturer's Grade 1115 Material Carbide Material Grade M/S Maximum Depth of Cut 8 mm Rake Negative Seat Size 15 Shape S-Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMG 543-MRR 1115 |
| Catalog Number | 6293010 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 90 deg |
| ISO Code | SNMG 15 06 12-MRR 1115 |
| Length | 5/8 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826273746 |
| Width | MRR |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MRR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | S - Square |
| Insert Style | SNMG |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Material Grade | M/S |
| Maximum Depth of Cut | 8 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | S-Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.5 mm/r cutting feed |
| 20 life cycle state |
