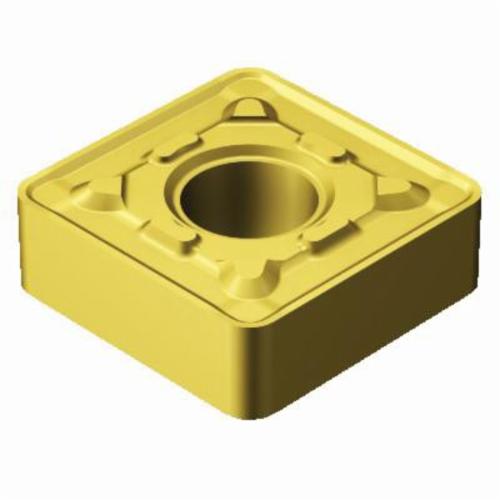

Sandvik Coromant 6293009 T-Max® P Negative Basic Shape Turning Insert, SNMG 433-MRR 2015, S-Square, SNMG Insert, 2015
Custom_Product_Images_Illustration
Sandvik Coromant 6293009 T-Max® P Negative Basic Shape Turning Insert, SNMG 433-MRR 2015, S-Square, SNMG Insert, 2015
SKU1230144
MFGR #6293009
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 7 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2015, ANSI Code: SNMG 433-MRR 2015, ISO Code: SNMG 12 04 12-MRR 2015, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 7 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2015, ANSI Code: SNMG 433-MRR 2015, ISO Code: SNMG 12 04 12-MRR 2015, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number SNMG 433-MRR 2015 ANSI Code SNMG 433-MRR 2015 Catalog Number 6293009 Corner Radius 0.0468 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 90 deg ISO Code SNMG 12 04 12-MRR 2015 Item Group 110 Length 1/2 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826273742 Width MRR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MRR Inscribed Circle 1/2 in Insert Size S - Square Insert Style SNMG Manufacturer's Grade 2015 Material Carbide Material Grade M Maximum Depth of Cut 7 mm Shape S-Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.65 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 433-MRR 2015 |
| ANSI Code | SNMG 433-MRR 2015 |
| Catalog Number | 6293009 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 deg |
| ISO Code | SNMG 12 04 12-MRR 2015 |
| Item Group | 110 |
| Length | 1/2 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826273742 |
| Width | MRR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MRR |
| Inscribed Circle | 1/2 in |
| Insert Size | S - Square |
| Insert Style | SNMG |
| Manufacturer's Grade | 2015 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 7 mm |
| Shape | S-Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.65 mm/r cutting feed |
| 20 life cycle state |
