Sandvik Coromant

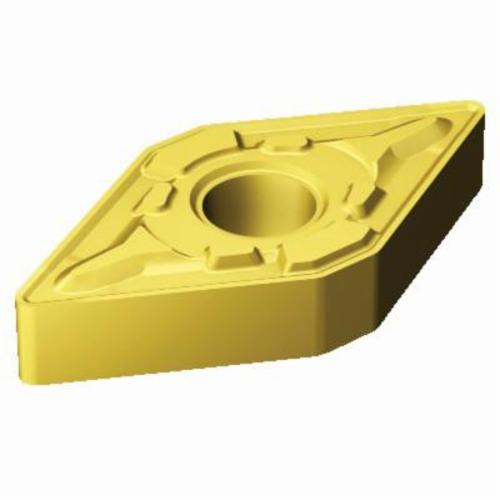

Sandvik Coromant 6293002 T-Max® P Negative Basic Shape Turning Insert, DNMG 443-MRR 2015, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6293002 T-Max® P Negative Basic Shape Turning Insert, DNMG 443-MRR 2015, D-55 deg Diamond, DNMG Insert
SKU1239306
MFGR #6293002
Your Cost: $18.09/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2015, ANSI Code: DNMG 443-MRR 2015, ISO Code: DNMG 15 06 12-MRR 2015, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, MRR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2015, ANSI Code: DNMG 443-MRR 2015, ISO Code: DNMG 15 06 12-MRR 2015, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
ANSI Code DNMG 443-MRR 2015 Catalog Number 6293002 Corner Radius 0.0468 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3900 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 06 12-MRR 2015 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826273644 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MRR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 443 Insert Style DNMG Manufacturer's Grade 2015 Material Carbide Material Grade M Maximum Depth of Cut 0.236 in Rake Negative Seat Size 15 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.65 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMG 443-MRR 2015 |
| Catalog Number | 6293002 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3900 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 06 12-MRR 2015 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826273644 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MRR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 443 |
| Insert Style | DNMG |
| Manufacturer's Grade | 2015 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.65 mm/r cutting feed |
| 20 life cycle state |
