Sandvik Coromant

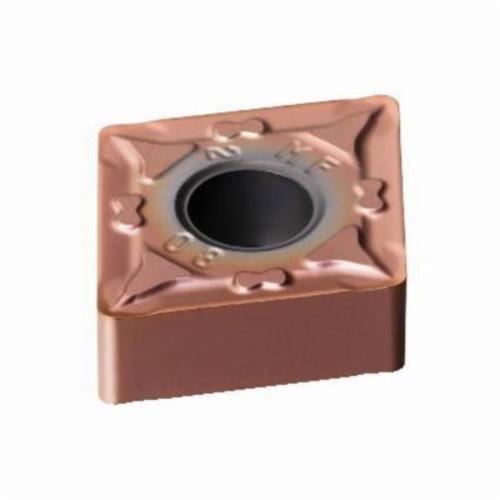

Sandvik Coromant 6292966 T-Max® P Negative Basic Shape Turning Insert, CNMG 322-MF 1115, C-80 deg Diamond, CNMG Insert, 1115
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6292966 T-Max® P Negative Basic Shape Turning Insert, CNMG 322-MF 1115, C-80 deg Diamond, CNMG Insert, 1115
SKU1239966
MFGR #6292966
Your Cost: $10.97/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, MF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CNMG 322-MF 1115, ISO Code: CNMG 09 03 08-MF 1115, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, MF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: CNMG 322-MF 1115, ISO Code: CNMG 09 03 08-MF 1115, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number CNMG 322-MF 1115 ANSI Code CNMG 322-MF 1115 Catalog Number 6292966 Corner Radius 0.031 in Country of Origin SE Finish PVD-TiAlN+AlCr2O3 Coated Gross Weight Per Pack 0.1000 lb Hole Diameter 0.15 in Included Angle 80 ° ISO Code CNMG 09 03 08-MF 1115 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/8 in UPC 11 69826273314 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MF Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/8 in Insert Size 322 Insert Style CNMG Manufacturer's Grade 1115 Material Carbide Material Grade M, S Maximum Depth of Cut 0.059 in Rake Negative Seat Size 09 Shape Rhombic Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.35 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 322-MF 1115 |
| ANSI Code | CNMG 322-MF 1115 |
| Catalog Number | 6292966 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Gross Weight Per Pack | 0.1000 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 09 03 08-MF 1115 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/8 in |
| UPC 11 | 69826273314 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/8 in |
| Insert Size | 322 |
| Insert Style | CNMG |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.059 in |
| Rake | Negative |
| Seat Size | 09 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.35 mm/r cutting feed |
