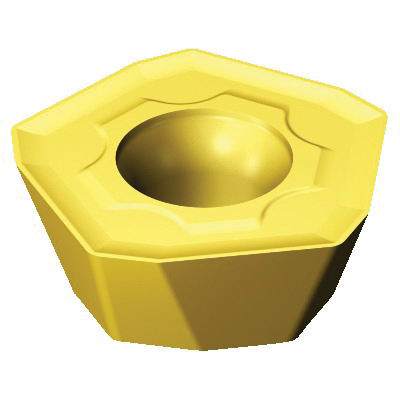

Sandvik Coromant 6289947 CoroMill® 419 Milling Insert, 419R-1405E-MM S40T ANSI, P-Pentagon, 419R..E-MM Insert, Carbide, S40T
Custom_Product_Images_Illustration
Sandvik Coromant 6289947 CoroMill® 419 Milling Insert, 419R-1405E-MM S40T ANSI, P-Pentagon, 419R..E-MM Insert, Carbide, S40T
SKU1228153
MFGR #6289947
Your Cost: $29.06/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 419, 419R..E-MM Insert, P-Pentagon, 0.5314 in Inscribed Circle, 0.2153 in Thickness, 0.3861 in Length, MM Chipbreaker, 0.0314 in Corner Radius, 5 deg Positive Rake, 71 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: 419R-1405E-MM S40T, ISO Code: 419R-1405E-MM S40T, Right Hand, Carbide, CVD Coated, Material Grade: M/S
Sandvik Coromant Milling Insert, Series: CoroMill® 419, 419R..E-MM Insert, P-Pentagon, 0.5314 in Inscribed Circle, 0.2153 in Thickness, 0.3861 in Length, MM Chipbreaker, 0.0314 in Corner Radius, 5 deg Positive Rake, 71 deg Lead Angle, 0.2165 in Hole Dia, Manufacturer's Grade: S40T, ANSI Code: 419R-1405E-MM S40T, ISO Code: 419R-1405E-MM S40T, Right Hand, Carbide, CVD Coated, Material Grade: M/S
Alternate Catalog Number 419R-1405E-MM S40T ANSI Code 419R-1405E-MM S40T Catalog Number 6289947 Corner Radius 0.0314 in Country of Origin FR Finish CVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.2165 in ISO Code 419R-1405E-MM S40T Item Group 350 Lead Angle 71 deg Length 0.3861 in Series CoroMill® 419 Thickness 0.2153 in Type CoroMill® 419 UPC 11 69826272582 Width P - Pentagon Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.5314 in Insert Size 5.47 mm Insert Style 419R..E-MM Manufacturer's Grade S40T Material Carbide Material Grade M/S Rake 5 deg Positive Shape P-Pentagon 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 2 mm D cutting 2.00 mm L wiper edge 108 deg included 19 deg major cutting edge 9 mm L effective cutting edge 1-side cutting 20 life cycle state 5 corner E cutting edge condition 5 cutting edge Screw in mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 419R-1405E-MM S40T |
| ANSI Code | 419R-1405E-MM S40T |
| Catalog Number | 6289947 |
| Corner Radius | 0.0314 in |
| Country of Origin | FR |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.2165 in |
| ISO Code | 419R-1405E-MM S40T |
| Item Group | 350 |
| Lead Angle | 71 deg |
| Length | 0.3861 in |
| Series | CoroMill® 419 |
| Thickness | 0.2153 in |
| Type | CoroMill® 419 |
| UPC 11 | 69826272582 |
| Width | P - Pentagon |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.5314 in |
| Insert Size | 5.47 mm |
| Insert Style | 419R..E-MM |
| Manufacturer's Grade | S40T |
| Material | Carbide |
| Material Grade | M/S |
| Rake | 5 deg Positive |
| Shape | P-Pentagon |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 2 mm D cutting |
| 2.00 mm L wiper edge |
| 108 deg included |
| 19 deg major cutting edge |
| 9 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 5 corner |
| E cutting edge condition |
| 5 cutting edge |
| Screw in mounting |
