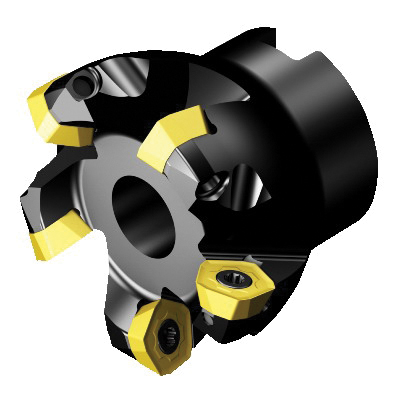

Sandvik Coromant 6289909 CoroMill® 419 Face Milling Cutter, 1.9015 in Cutting, 3/4 in Shank, 1.9685 in OAL, A419..Rxx Insert, 0.0787 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6289909 CoroMill® 419 Face Milling Cutter, 1.9015 in Cutting, 3/4 in Shank, 1.9685 in OAL, A419..Rxx Insert, 0.0787 in Max Depth of Cut
SKU1229656
MFGR #6289909
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.9015 in Cutting Dia, 1.9685 in Overall Length, 0.0787 in Maximum Depth of Cut, A419..Rxx Insert, 4 Inserts, Insert Compatibility: 419R-1405, 3/4 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: A419-063R19-14L, ISO Code: A419-063R19-14L, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.9015 in Cutting Dia, 1.9685 in Overall Length, 0.0787 in Maximum Depth of Cut, A419..Rxx Insert, 4 Inserts, Insert Compatibility: 419R-1405, 3/4 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: A419-063R19-14L, ISO Code: A419-063R19-14L, Steel
Alternate Catalog Number A419-063R19-14L ANSI Code A419-063R19-14L Catalog Number 6289909 Country of Origin US Gross Weight Per Pack 0.6600 lb Head Length 2 mm Insert Gage Screw 19.05 mm ISO Code A419-063R19-14L Item Group 450 Material Steel Series CoroMill® 419 Standards ISO 6462:2011 Type Right Hand UPC 11 69826272544 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 19 deg Cutting Diameter 1.9015 in Cutting Direction Right Hand Insert Compatibility 419R-1405 Insert Style A419..Rxx Maximum Depth of Cut 0.0787 in Number of Inserts 4 Overall Length 1.9685 in Shank Diameter 3/4 in Shank Length A419-063R19-14L Shank Type 48.3 mm 2 mm plunge depth Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 63.5 mm Dia maximum cutting 8.15 mm W keyway 50 mm overhang 7 deg maximum ramping 15100 r/min 5 Nm torque 20 life cycle state 43 mm Dia neck Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A419-063R19-14L |
| ANSI Code | A419-063R19-14L |
| Catalog Number | 6289909 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.6600 lb |
| Head Length | 2 mm |
| Insert Gage Screw | 19.05 mm |
| ISO Code | A419-063R19-14L |
| Item Group | 450 |
| Material | Steel |
| Series | CoroMill® 419 |
| Standards | ISO 6462:2011 |
| Type | Right Hand |
| UPC 11 | 69826272544 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 19 deg |
| Cutting Diameter | 1.9015 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 419R-1405 |
| Insert Style | A419..Rxx |
| Maximum Depth of Cut | 0.0787 in |
| Number of Inserts | 4 |
| Overall Length | 1.9685 in |
| Shank Diameter | 3/4 in |
| Shank Length | A419-063R19-14L |
| Shank Type | 48.3 mm |
| 2 mm plunge depth |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 63.5 mm Dia maximum cutting |
| 8.15 mm W keyway |
| 50 mm overhang |
| 7 deg maximum ramping |
| 15100 r/min |
| 5 Nm torque |
| 20 life cycle state |
| 43 mm Dia neck |
| Hexagon socket head cap screw adaptive interface |
