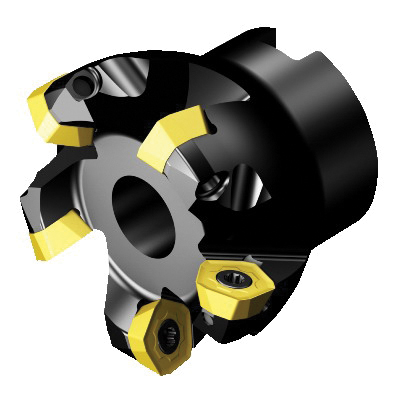

Sandvik Coromant 6289908 CoroMill® 419 Face Milling Cutter, 1.4212 in Cutting, 3/4 in Shank, 1-3/4 in OAL, A419..Rxx Insert, 0.0787 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6289908 CoroMill® 419 Face Milling Cutter, 1.4212 in Cutting, 3/4 in Shank, 1-3/4 in OAL, A419..Rxx Insert, 0.0787 in Max Depth of Cut
SKU782687
MFGR #6289908
Your Cost: $802.28/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.4212 in Cutting Dia, 1-3/4 in Overall Length, 0.0787 in Maximum Depth of Cut, A419..Rxx Insert, 4 Inserts, Insert Compatibility: 419R-1405, 3/4 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: A419-051R19-14M, ISO Code: A419-051R19-14M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.4212 in Cutting Dia, 1-3/4 in Overall Length, 0.0787 in Maximum Depth of Cut, A419..Rxx Insert, 4 Inserts, Insert Compatibility: 419R-1405, 3/4 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: A419-051R19-14M, ISO Code: A419-051R19-14M, Steel
Alternate Catalog Number A419-051R19-14M ANSI Code A419-051R19-14M Arbor Hole Diameter 3/4 Brand Sandvik Coromant Catalog Number 6289908 Country of Origin US Cutting Angle 19 deg Cutting Diameter 1.4212 in Cutting Direction Right Hand Gross Weight Per Pack 0.4400 lb Head Length CoroMill® 419 Insert Compatibility 419R-1405 Insert Gage Screw 19.05 mm Insert Style A419..Rxx ISO Code A419-051R19-14M Item Group 450 Lead Angle 19 Manufacturer Sandvik Coromant Material Steel Maximum Depth of Cut 0.0787 in Number of Inserts 4 Overall Length 1-3/4 in Series CoroMill® 419 Shank Diameter 3/4 in Shank Length 19.05 mm Shank Type 5763133 Coolant Screw, 5764197 Torque Wrench, 5764234 Bit and 6289951 Insert Screw Standards ISO 6462:2011 Stock Status NONSTOCK Type 4 UPC 11 69826272542 UPC 12 69826272542 2 mm plunge depth Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 50.8 mm Dia maximum cutting 8.15 mm W keyway 44.45 mm overhang 8 deg maximum ramping 17300 r/min 5 Nm torque 20 life cycle state 43 mm Dia neck Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A419-051R19-14M |
| ANSI Code | A419-051R19-14M |
| Arbor Hole Diameter | 3/4 |
| Brand | Sandvik Coromant |
| Catalog Number | 6289908 |
| Country of Origin | US |
| Cutting Angle | 19 deg |
| Cutting Diameter | 1.4212 in |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.4400 lb |
| Head Length | CoroMill® 419 |
| Insert Compatibility | 419R-1405 |
| Insert Gage Screw | 19.05 mm |
| Insert Style | A419..Rxx |
| ISO Code | A419-051R19-14M |
| Item Group | 450 |
| Lead Angle | 19 |
| Manufacturer | Sandvik Coromant |
| Material | Steel |
| Maximum Depth of Cut | 0.0787 in |
| Number of Inserts | 4 |
| Overall Length | 1-3/4 in |
| Series | CoroMill® 419 |
| Shank Diameter | 3/4 in |
| Shank Length | 19.05 mm |
| Shank Type | 5763133 Coolant Screw, 5764197 Torque Wrench, 5764234 Bit and 6289951 Insert Screw |
| Standards | ISO 6462:2011 |
| Stock Status | NONSTOCK |
| Type | 4 |
| UPC 11 | 69826272542 |
| UPC 12 | 69826272542 |
| 2 mm plunge depth |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 50.8 mm Dia maximum cutting |
| 8.15 mm W keyway |
| 44.45 mm overhang |
| 8 deg maximum ramping |
| 17300 r/min |
| 5 Nm torque |
| 20 life cycle state |
| 43 mm Dia neck |
| Hexagon socket head cap screw adaptive interface |
