Sandvik Coromant

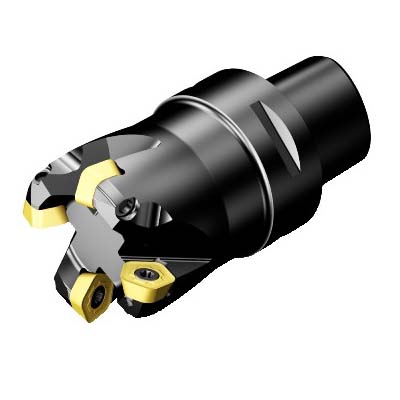

Sandvik Coromant 6289904 CoroMill® 419 Face Milling Cutter, 2.7283 in Cutting, 3.1496 in Shank, 4.6456 in OAL, 419..Cx Insert, 0.0787 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6289904 CoroMill® 419 Face Milling Cutter, 2.7283 in Cutting, 3.1496 in Shank, 4.6456 in OAL, 419..Cx Insert, 0.0787 in Max Depth of Cut
SKU1228022
MFGR #6289904
Your Cost: $1,402.38/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 2.7283 in Cutting Dia, 4.6456 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Cx Insert, 6 Inserts, Insert Compatibility: 419R-1405, 3.1496 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-084C8-14H, ISO Code: 419-084C8-14H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 2.7283 in Cutting Dia, 4.6456 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Cx Insert, 6 Inserts, Insert Compatibility: 419R-1405, 3.1496 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-084C8-14H, ISO Code: 419-084C8-14H, Steel
Alternate Catalog Number 419-084C8-14H ANSI Code 419-084C8-14H Catalog Number 6289904 Country of Origin US Gross Weight Per Pack 6.8200 lb Head Length 80 mm Insert Gage Screw 80 mm ISO Code 419-084C8-14H Item Group 450 Material Steel Series CoroMill® 419 Type Steel UPC 11 69826272560 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 19 deg Cutting Diameter 2.7283 in Cutting Direction Right Hand Insert Compatibility 419R-1405 Insert Style 419..Cx Maximum Depth of Cut 0.0787 in Number of Inserts 6 Overall Length 4.6456 in Shank Diameter 3.1496 in Shank Length Right Hand Shank Type 419-084C8-14H 2 mm plunge depth Axial concentric and radial coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 84 mm Dia maximum cutting 70 mm overhang 5 deg maximum ramping 12600 r/min 5 Nm torque 20 life cycle state 75 mm Dia neck Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 419-084C8-14H |
| ANSI Code | 419-084C8-14H |
| Catalog Number | 6289904 |
| Country of Origin | US |
| Gross Weight Per Pack | 6.8200 lb |
| Head Length | 80 mm |
| Insert Gage Screw | 80 mm |
| ISO Code | 419-084C8-14H |
| Item Group | 450 |
| Material | Steel |
| Series | CoroMill® 419 |
| Type | Steel |
| UPC 11 | 69826272560 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 19 deg |
| Cutting Diameter | 2.7283 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 419R-1405 |
| Insert Style | 419..Cx |
| Maximum Depth of Cut | 0.0787 in |
| Number of Inserts | 6 |
| Overall Length | 4.6456 in |
| Shank Diameter | 3.1496 in |
| Shank Length | Right Hand |
| Shank Type | 419-084C8-14H |
| 2 mm plunge depth |
| Axial concentric and radial coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 84 mm Dia maximum cutting |
| 70 mm overhang |
| 5 deg maximum ramping |
| 12600 r/min |
| 5 Nm torque |
| 20 life cycle state |
| 75 mm Dia neck |
| Bolt and segment clamping adaptive interface |
