Sandvik Coromant

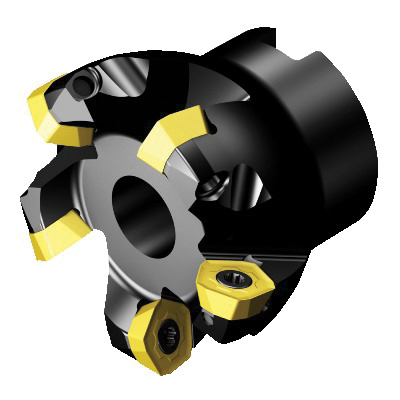

Sandvik Coromant 6289897 CoroMill® 419 Face Milling Cutter, 2.5708 in Cutting, 1.0629 in Shank, 1.9685 in OAL, 419..Qxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6289897 CoroMill® 419 Face Milling Cutter, 2.5708 in Cutting, 1.0629 in Shank, 1.9685 in OAL, 419..Qxx Insert
SKU1228024
MFGR #6289897
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 2.5708 in Cutting Dia, 1.9685 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Qxx Insert, 6 Inserts, Insert Compatibility: 419R-1405, 1.0629 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-080Q27-14H, ISO Code: 419-080Q27-14H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 2.5708 in Cutting Dia, 1.9685 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Qxx Insert, 6 Inserts, Insert Compatibility: 419R-1405, 1.0629 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-080Q27-14H, ISO Code: 419-080Q27-14H, Steel
Alternate Catalog Number 419-080Q27-14H ANSI Code 419-080Q27-14H Catalog Number 6289897 Country of Origin US Gross Weight Per Pack 1.7600 lb Head Length 27 mm Insert Gage Screw 27 mm ISO Code 419-080Q27-14H Item Group 450 Material Steel Series CoroMill® 419 Standards ISO 6462:2011 Type 6 UPC 11 69826272557 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 19 deg Cutting Diameter 2.5708 in Cutting Direction Right Hand Insert Compatibility 419R-1405 Insert Style 419..Qxx Maximum Depth of Cut 0.0787 in Number of Inserts 6 Overall Length 1.9685 in Shank Diameter 1.0629 in Shank Length 5763128 Coolant Screw, 5764197 Torque Wrench, 5764234 Bit and 6289951 Insert Screw Shank Type Right Hand 2 mm plunge depth Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 80 mm Dia maximum cutting 12.4 mm W keyway 50 mm overhang 5 deg maximum ramping 13000 r/min 5 Nm torque 20 life cycle state 60 mm Dia neck Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 419-080Q27-14H |
| ANSI Code | 419-080Q27-14H |
| Catalog Number | 6289897 |
| Country of Origin | US |
| Gross Weight Per Pack | 1.7600 lb |
| Head Length | 27 mm |
| Insert Gage Screw | 27 mm |
| ISO Code | 419-080Q27-14H |
| Item Group | 450 |
| Material | Steel |
| Series | CoroMill® 419 |
| Standards | ISO 6462:2011 |
| Type | 6 |
| UPC 11 | 69826272557 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 19 deg |
| Cutting Diameter | 2.5708 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 419R-1405 |
| Insert Style | 419..Qxx |
| Maximum Depth of Cut | 0.0787 in |
| Number of Inserts | 6 |
| Overall Length | 1.9685 in |
| Shank Diameter | 1.0629 in |
| Shank Length | 5763128 Coolant Screw, 5764197 Torque Wrench, 5764234 Bit and 6289951 Insert Screw |
| Shank Type | Right Hand |
| 2 mm plunge depth |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 80 mm Dia maximum cutting |
| 12.4 mm W keyway |
| 50 mm overhang |
| 5 deg maximum ramping |
| 13000 r/min |
| 5 Nm torque |
| 20 life cycle state |
| 60 mm Dia neck |
| Hexagon socket head cap screw adaptive interface |
