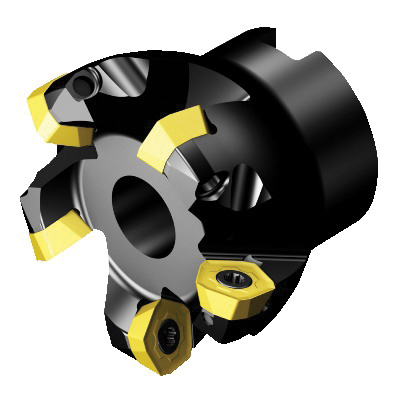

Sandvik Coromant 6289892 CoroMill® 419 Face Milling Cutter, 1.3937 in Cutting, 0.8661 in Shank, 1.7716 in OAL, 419..Qxx Insert, 0.0787 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6289892 CoroMill® 419 Face Milling Cutter, 1.3937 in Cutting, 0.8661 in Shank, 1.7716 in OAL, 419..Qxx Insert, 0.0787 in Max Depth of Cut
SKU1228049
MFGR #6289892
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.3937 in Cutting Dia, 1.7716 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Qxx Insert, 3 Inserts, Insert Compatibility: 419R-1405, 0.8661 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-050Q22-14L, ISO Code: 419-050Q22-14L, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.3937 in Cutting Dia, 1.7716 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Qxx Insert, 3 Inserts, Insert Compatibility: 419R-1405, 0.8661 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-050Q22-14L, ISO Code: 419-050Q22-14L, Steel
ANSI Code 419-050Q22-14L Catalog Number 6289892 Country of Origin US Gross Weight Per Pack 0.4400 lb Head Length 419-050Q22-14L Insert Gage Screw 22 mm ISO Code 419-050Q22-14L Material Steel Series CoroMill® 419 Standards ISO 6462:2011 Type 5763127 Coolant Screw, 5764197 Torque Wrench, 5764234 Bit and 6289951 Insert Screw UPC 11 69826272552 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Cutting Angle 19 deg Cutting Diameter 1.3937 in Cutting Direction Right Hand Insert Compatibility 419R-1405 Insert Style 419..Qxx Maximum Depth of Cut 0.0787 in Number of Inserts 3 Overall Length 1.7716 in Shank Diameter 0.8661 in Shank Length 3 Shank Type Right Hand 2 mm plunge depth Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 50 mm Dia maximum cutting 10.4 mm W keyway 45 mm overhang 8 deg maximum ramping 17600 r/min 5 Nm torque 20 life cycle state 43 mm Dia neck Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 419-050Q22-14L |
| Catalog Number | 6289892 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.4400 lb |
| Head Length | 419-050Q22-14L |
| Insert Gage Screw | 22 mm |
| ISO Code | 419-050Q22-14L |
| Material | Steel |
| Series | CoroMill® 419 |
| Standards | ISO 6462:2011 |
| Type | 5763127 Coolant Screw, 5764197 Torque Wrench, 5764234 Bit and 6289951 Insert Screw |
| UPC 11 | 69826272552 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Cutting Angle | 19 deg |
| Cutting Diameter | 1.3937 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 419R-1405 |
| Insert Style | 419..Qxx |
| Maximum Depth of Cut | 0.0787 in |
| Number of Inserts | 3 |
| Overall Length | 1.7716 in |
| Shank Diameter | 0.8661 in |
| Shank Length | 3 |
| Shank Type | Right Hand |
| 2 mm plunge depth |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 50 mm Dia maximum cutting |
| 10.4 mm W keyway |
| 45 mm overhang |
| 8 deg maximum ramping |
| 17600 r/min |
| 5 Nm torque |
| 20 life cycle state |
| 43 mm Dia neck |
| Hexagon socket head cap screw adaptive interface |
