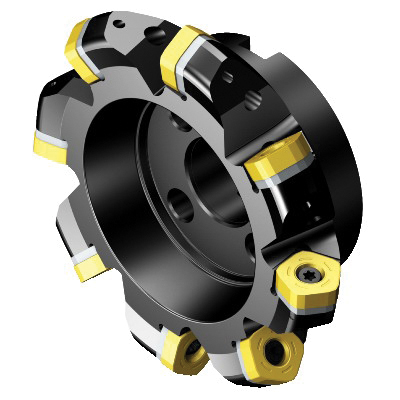

Sandvik Coromant 6289850 CoroMill® 357 Face Milling Cutter, 10 in Cutting, 2-1/2 in Shank, 2.4803 in OAL, A357..Rxx Insert, 0.3937 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6289850 CoroMill® 357 Face Milling Cutter, 10 in Cutting, 2-1/2 in Shank, 2.4803 in OAL, A357..Rxx Insert, 0.3937 in Max Depth of Cut
SKU1229293
MFGR #6289850
Your Cost: $3,087.21/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 10 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Rxx Insert, 12 Inserts, Insert Compatibility: 357R-2408, 2-1/2 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-254R63-24M, ISO Code: A357-254R63-24M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 10 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Rxx Insert, 12 Inserts, Insert Compatibility: 357R-2408, 2-1/2 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-254R63-24M, ISO Code: A357-254R63-24M, Steel
ANSI Code A357-254R63-24M Catalog Number 6289850 Country of Origin SE Finish 5322 131-01 Gross Weight Per Pack 28.3800 lb Head Length 12 Insert Gage Screw 63.5 mm ISO Code A357-254R63-24M Material Steel Series CoroMill® 357 Standards ISO 6462:2011 Type 10 mm UPC 11 69826272640 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 57 deg Cutting Diameter 10 in Cutting Direction Right Hand Insert Compatibility 357R-2408 Insert Style A357..Rxx Maximum Depth of Cut 0.3937 in Number of Inserts 12 Overall Length 2.4803 in Shank Diameter 2-1/2 in Shank Length 63.5 mm Shank Type 63 mm Without coolant entry Differential cutting pitch 40 - 60 deg insert screw clamping interface 101.6 mm Dia bolt circle 269.8 mm Dia maximum cutting 25.7 mm W keyway 63 mm overhang 0 deg maximum ramping 3000 r/min cutting feed 15 Nm torque 20 life cycle state 4-bolt adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | A357-254R63-24M |
| Catalog Number | 6289850 |
| Country of Origin | SE |
| Finish | 5322 131-01 |
| Gross Weight Per Pack | 28.3800 lb |
| Head Length | 12 |
| Insert Gage Screw | 63.5 mm |
| ISO Code | A357-254R63-24M |
| Material | Steel |
| Series | CoroMill® 357 |
| Standards | ISO 6462:2011 |
| Type | 10 mm |
| UPC 11 | 69826272640 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 57 deg |
| Cutting Diameter | 10 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 357R-2408 |
| Insert Style | A357..Rxx |
| Maximum Depth of Cut | 0.3937 in |
| Number of Inserts | 12 |
| Overall Length | 2.4803 in |
| Shank Diameter | 2-1/2 in |
| Shank Length | 63.5 mm |
| Shank Type | 63 mm |
| Without coolant entry |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 101.6 mm Dia bolt circle |
| 269.8 mm Dia maximum cutting |
| 25.7 mm W keyway |
| 63 mm overhang |
| 0 deg maximum ramping |
| 3000 r/min cutting feed |
| 15 Nm torque |
| 20 life cycle state |
| 4-bolt adaptive interface |
