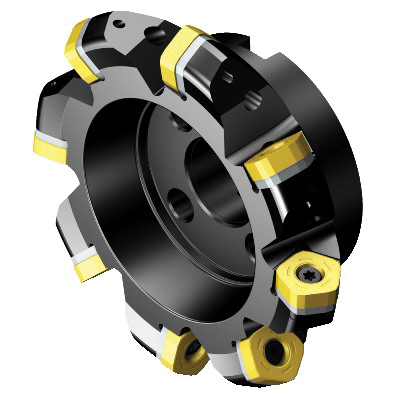

Sandvik Coromant 6289848 CoroMill® 357 Face Milling Cutter, 6 in Cutting, 1-1/2 in Shank, 2.4803 in OAL, A357..Rxx Insert, 0.3937 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6289848 CoroMill® 357 Face Milling Cutter, 6 in Cutting, 1-1/2 in Shank, 2.4803 in OAL, A357..Rxx Insert, 0.3937 in Max Depth of Cut
SKU1229301
MFGR #6289848
Your Cost: $1,884.17/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 6 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Rxx Insert, 8 Inserts, Insert Compatibility: 357R-2408, 1-1/2 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-152R38-24M, ISO Code: A357-152R38-24M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 6 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Rxx Insert, 8 Inserts, Insert Compatibility: 357R-2408, 1-1/2 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-152R38-24M, ISO Code: A357-152R38-24M, Steel
ANSI Code A357-152R38-24M Catalog Number 6289848 Country of Origin SE Finish 5322 131-01 Gross Weight Per Pack 6.3800 lb Head Length 357R-2408 Insert Gage Screw 38.1 mm ISO Code A357-152R38-24M Lead Angle 57 Material Steel Series CoroMill® 357 Standards ISO 6462:2011 Type 10 mm UPC 11 69826272628 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1-1/2 Cutting Angle 57 deg Cutting Diameter 6 in Cutting Direction Right Hand Insert Compatibility 357R-2408 Insert Style A357..Rxx Maximum Depth of Cut 0.3937 in Number of Inserts 8 Overall Length 2.4803 in Shank Diameter 1-1/2 in Shank Length 152.4 mm Shank Type 5764093 Bit, 5764191 Torque Wrench, 5764228 Torque Wrench, 5764238 Bit, 6289865 Insert Screw, 6289866 Shim Screw, 6289867 Shim and 6763500 Coolant Screw Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 168.2 mm Dia maximum cutting 16.08 mm W keyway 63 mm overhang 0 deg maximum ramping 4100 r/min 15 Nm torque 20 life cycle state Cutter retaining screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | A357-152R38-24M |
| Catalog Number | 6289848 |
| Country of Origin | SE |
| Finish | 5322 131-01 |
| Gross Weight Per Pack | 6.3800 lb |
| Head Length | 357R-2408 |
| Insert Gage Screw | 38.1 mm |
| ISO Code | A357-152R38-24M |
| Lead Angle | 57 |
| Material | Steel |
| Series | CoroMill® 357 |
| Standards | ISO 6462:2011 |
| Type | 10 mm |
| UPC 11 | 69826272628 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1-1/2 |
| Cutting Angle | 57 deg |
| Cutting Diameter | 6 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 357R-2408 |
| Insert Style | A357..Rxx |
| Maximum Depth of Cut | 0.3937 in |
| Number of Inserts | 8 |
| Overall Length | 2.4803 in |
| Shank Diameter | 1-1/2 in |
| Shank Length | 152.4 mm |
| Shank Type | 5764093 Bit, 5764191 Torque Wrench, 5764228 Torque Wrench, 5764238 Bit, 6289865 Insert Screw, 6289866 Shim Screw, 6289867 Shim and 6763500 Coolant Screw |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 168.2 mm Dia maximum cutting |
| 16.08 mm W keyway |
| 63 mm overhang |
| 0 deg maximum ramping |
| 4100 r/min |
| 15 Nm torque |
| 20 life cycle state |
| Cutter retaining screw adaptive interface |
