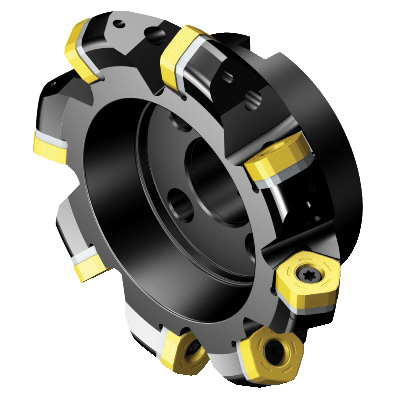

Sandvik Coromant 6289845 CoroMill® 357 Face Milling Cutter, 9.8425 in Cutting, 1-7/8 in Shank, 2.4803 in OAL, A357..Jxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6289845 CoroMill® 357 Face Milling Cutter, 9.8425 in Cutting, 1-7/8 in Shank, 2.4803 in OAL, A357..Jxx Insert
SKU1229292
MFGR #6289845
Your Cost: $3,412.30/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 9.8425 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Jxx Insert, 12 Inserts, Insert Compatibility: 357R-2408, 1-7/8 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-250J47.625-24M, ISO Code: A357-250J47.625-24M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 9.8425 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Jxx Insert, 12 Inserts, Insert Compatibility: 357R-2408, 1-7/8 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-250J47.625-24M, ISO Code: A357-250J47.625-24M, Steel
ANSI Code A357-250J47.625-24M Catalog Number 6289845 Country of Origin SE Finish 5322 131-01 Gross Weight Per Pack 27.5000 lb Head Length 5764093 Bit, 5764191 Torque Wrench, 5764228 Torque Wrench, 5764238 Bit, 6289865 Insert Screw, 6289866 Shim Screw and 6289867 Shim Insert Gage Screw 47.625 mm ISO Code A357-250J47.625-24M Lead Angle 57 Material Steel Series CoroMill® 357 Type Steel UPC 11 69826272639 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1-7/8 Cutting Angle 57 deg Cutting Diameter 9.8425 in Cutting Direction Right Hand Insert Compatibility 357R-2408 Insert Style A357..Jxx Maximum Depth of Cut 0.3937 in Number of Inserts 12 Overall Length 2.4803 in Shank Diameter 1-7/8 in Shank Length A357-250J47.625-24M Shank Type 47.625 mm Without coolant entry Differential cutting pitch 40 - 60 deg insert screw clamping interface 66.7 mm Dia bolt circle 265.8 mm Dia maximum cutting 25.7 mm W keyway 63 mm overhang 0 deg maximum ramping 3000 r/min cutting feed 15 Nm torque 20 life cycle state 4-bolt adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | A357-250J47.625-24M |
| Catalog Number | 6289845 |
| Country of Origin | SE |
| Finish | 5322 131-01 |
| Gross Weight Per Pack | 27.5000 lb |
| Head Length | 5764093 Bit, 5764191 Torque Wrench, 5764228 Torque Wrench, 5764238 Bit, 6289865 Insert Screw, 6289866 Shim Screw and 6289867 Shim |
| Insert Gage Screw | 47.625 mm |
| ISO Code | A357-250J47.625-24M |
| Lead Angle | 57 |
| Material | Steel |
| Series | CoroMill® 357 |
| Type | Steel |
| UPC 11 | 69826272639 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1-7/8 |
| Cutting Angle | 57 deg |
| Cutting Diameter | 9.8425 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 357R-2408 |
| Insert Style | A357..Jxx |
| Maximum Depth of Cut | 0.3937 in |
| Number of Inserts | 12 |
| Overall Length | 2.4803 in |
| Shank Diameter | 1-7/8 in |
| Shank Length | A357-250J47.625-24M |
| Shank Type | 47.625 mm |
| Without coolant entry |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 66.7 mm Dia bolt circle |
| 265.8 mm Dia maximum cutting |
| 25.7 mm W keyway |
| 63 mm overhang |
| 0 deg maximum ramping |
| 3000 r/min cutting feed |
| 15 Nm torque |
| 20 life cycle state |
| 4-bolt adaptive interface |
