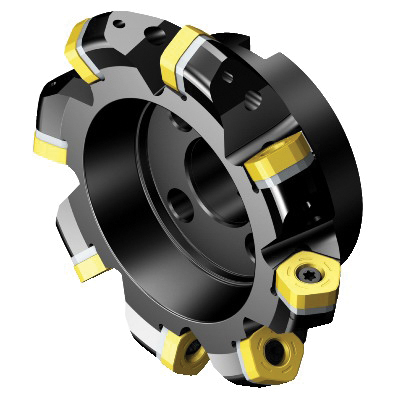

Sandvik Coromant 6289843 CoroMill® 357 Face Milling Cutter, 6.2992 in Cutting, 2 in Shank, 2.4803 in OAL, A357..Jxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6289843 CoroMill® 357 Face Milling Cutter, 6.2992 in Cutting, 2 in Shank, 2.4803 in OAL, A357..Jxx Insert
SKU1229306
MFGR #6289843
Your Cost: $1,884.17/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 6.2992 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Jxx Insert, 8 Inserts, Insert Compatibility: 357R-2408, 2 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-160J50.8-24M, ISO Code: A357-160J50.8-24M, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 357, 6.2992 in Cutting Dia, 2.4803 in Overall Length, 0.3937 in Maximum Depth of Cut, A357..Jxx Insert, 8 Inserts, Insert Compatibility: 357R-2408, 2 in Shank Dia, Right Hand Cutting, 57 deg Cutting Angle, ANSI Code: A357-160J50.8-24M, ISO Code: A357-160J50.8-24M, Steel
ANSI Code A357-160J50.8-24M Catalog Number 6289843 Country of Origin SE Finish 5322 131-01 Gross Weight Per Pack 7.0400 lb Head Length 50.8 mm Insert Gage Screw 50.8 mm ISO Code A357-160J50.8-24M Material Steel Series CoroMill® 357 Type Steel UPC 11 69826272629 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Angle 57 deg Cutting Diameter 6.2992 in Cutting Direction Right Hand Insert Compatibility 357R-2408 Insert Style A357..Jxx Maximum Depth of Cut 0.3937 in Number of Inserts 8 Overall Length 2.4803 in Shank Diameter 2 in Shank Length A357..Jxx Shank Type 5680 099-01 Adjustable Torque Wrench 5680 084-10 bit; 5680 105-02 Screwdriver non adj torque wrench 5680 084-03 bit Without coolant entry Differential cutting pitch 40 - 60 deg insert screw clamping interface 175.8 mm Dia maximum cutting 19.28 mm W keyway 63 mm overhang 0 deg maximum ramping 4000 r/min 15 Nm torque 20 life cycle state Cutter retaining screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | A357-160J50.8-24M |
| Catalog Number | 6289843 |
| Country of Origin | SE |
| Finish | 5322 131-01 |
| Gross Weight Per Pack | 7.0400 lb |
| Head Length | 50.8 mm |
| Insert Gage Screw | 50.8 mm |
| ISO Code | A357-160J50.8-24M |
| Material | Steel |
| Series | CoroMill® 357 |
| Type | Steel |
| UPC 11 | 69826272629 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Angle | 57 deg |
| Cutting Diameter | 6.2992 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 357R-2408 |
| Insert Style | A357..Jxx |
| Maximum Depth of Cut | 0.3937 in |
| Number of Inserts | 8 |
| Overall Length | 2.4803 in |
| Shank Diameter | 2 in |
| Shank Length | A357..Jxx |
| Shank Type | 5680 099-01 Adjustable Torque Wrench 5680 084-10 bit; 5680 105-02 Screwdriver non adj torque wrench 5680 084-03 bit |
| Without coolant entry |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 175.8 mm Dia maximum cutting |
| 19.28 mm W keyway |
| 63 mm overhang |
| 0 deg maximum ramping |
| 4000 r/min |
| 15 Nm torque |
| 20 life cycle state |
| Cutter retaining screw adaptive interface |
